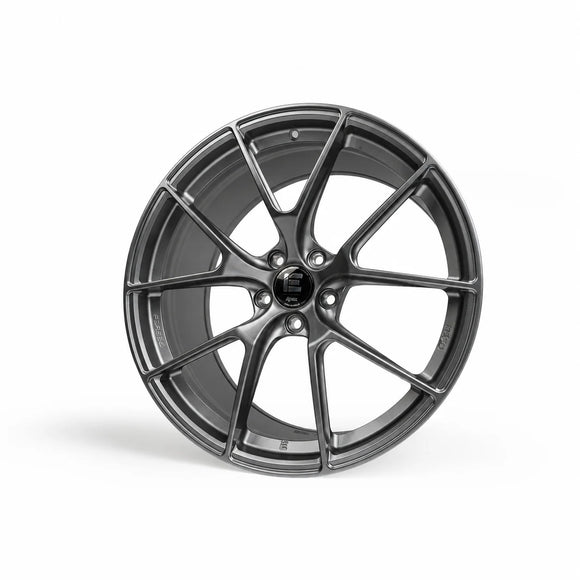

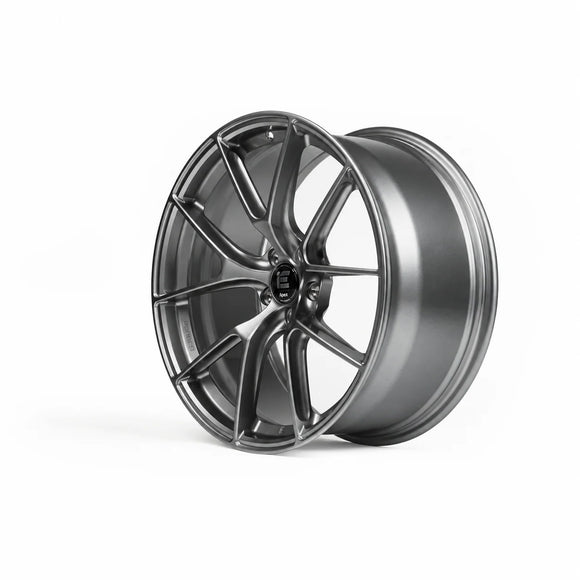

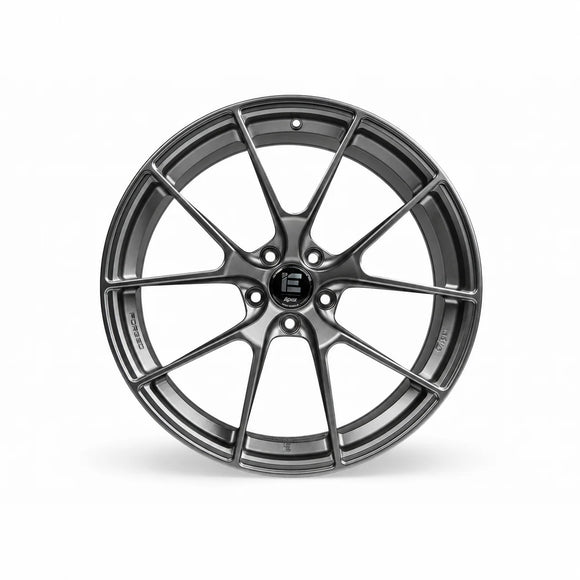

iE / Apex VS-5RS Lightweight Wheels | Audi B10 S5

iE / Apex VS-5RS Lightweight Wheels | Audi B10 S5

$6,120.34 CAD

Shipping calculated at checkout

Integrated Engineering SKU: IEWHDF1-AN

CHOOSE YOUR COLOR: Anthracite
Anthracite
Race Silver

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

IEWHDF1

BUILT FOR ONE CAR

No off-the-shelf wheel uses everything the B10 S5 chassis has to offer. iE and Apex teamed up to engineer the VS-5RS from scratch to fill every millimeter of clearance to deliver the biggest tire contact patch your car can run with a 265/35R20 tire size.

BUILT FOR ONE CAR

TAILORED TO GRIP

Are you going to buy your suit from a big-box store, or have one tailored? The VS-5RS is the perfect-fit bolt-on wheel engineered for the B10 S5 alone to gain the largest tire contact patch and grip your S5 can support. Pair with iE B10 S5 sway bar and spring upgrades so the wheel, tire and suspension work as one.

TAILORED TO GRIP

SCANNED FOR ZERO RUB

By 3D-scanning the suspension through its full travel and with steering at full lock, iE and Apex fit the wheel to every millimeter of usable space with no rubbing. This also ensures ample headroom for bigger brakes down the road.

SCANNED FOR ZERO RUB

Light AND STRONG

Machined from a solid monoblock of 10K ton forged 6061-T6 aluminum and weighing in at only 20.3 lbs a piece. These 20" VS-5RS are extremely lightweight and without the strength compromises found on cast or cheap light wheels. Built to the standard your B10 deserves.

TWO WAYS TO WEAR IT

Choose Anthracite for a darker, stealthier stance. If a classic motorsport look is more your speed, then go for Race Silver for a brighter face. Either way, the color will suit your new aggressive style.

TWO WAYS TO WEAR IT

TORTURE TESTED

The wheel industry is unregulated and full of unverified and even dangerous options. iE x Apex protect consumers with independent lab testing in Ohio that performs duration, impact drop height, and total load testing far above JWL standards.

TORTURE TESTED

WHEEL GALLERY























Tech Specs

Specification Details
Tire Size
  • Requires 265/35R20 for best results
  • -
Construction
  • Monoblock
  • 10K ton forged 6061-T6 aluminum
Weight
  • 20.3 lbs
  • Per wheel (each)
Color Finishes

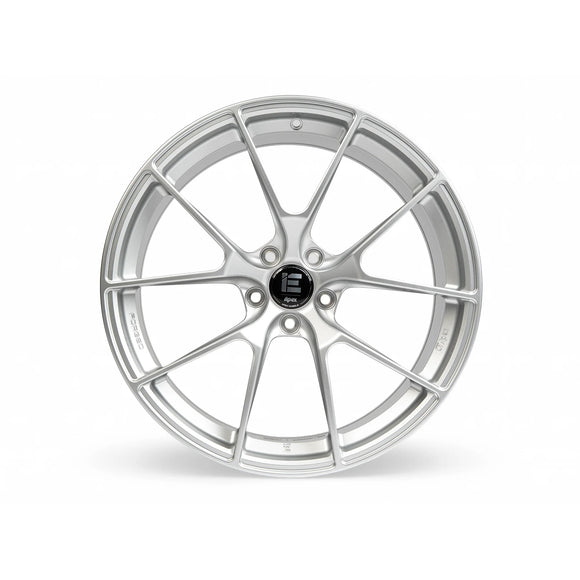

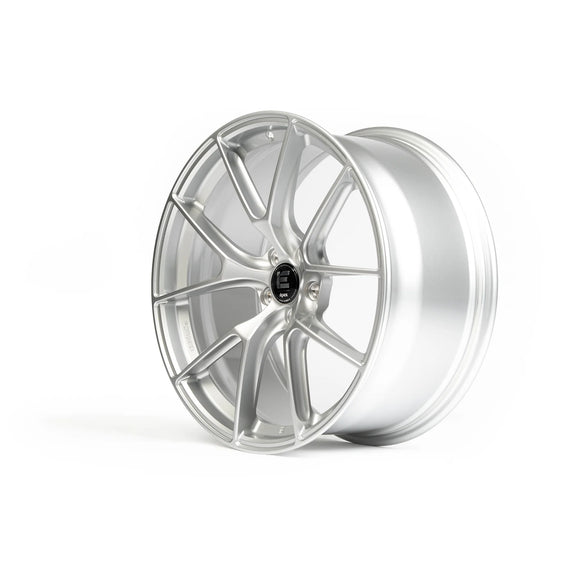

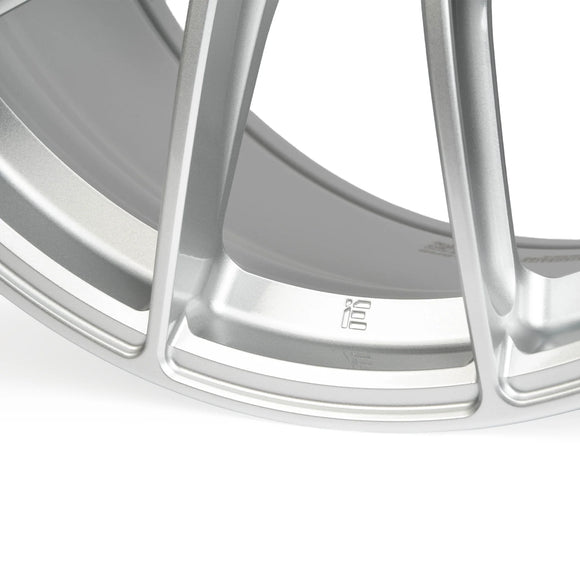

  • Race Silver

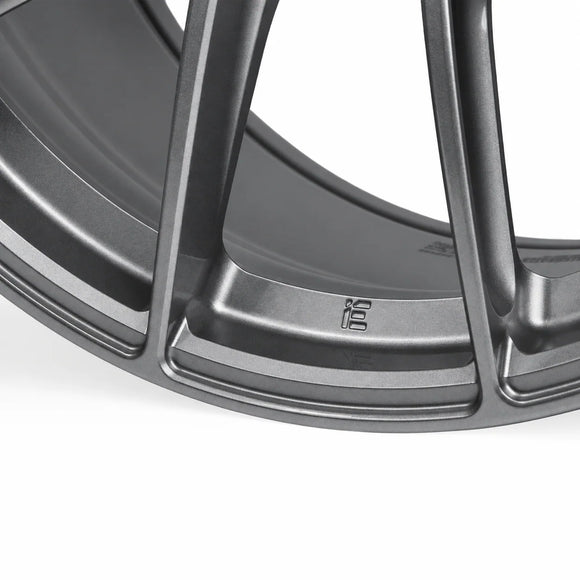

  • Anthracite
Diameter
  • 20"
  • -
Width
  • 9.5"
  • -
Offset
  • ET40
  • -
Bolt Pattern
  • 5X112
  • -
Center Bore
  • 66.5
  • B10-S5 specific hub
Load Rating
  • 1600 lbs
  • -
Lug fitment
  • Oversized 32mm socket clearance
  • Fits large race lugs and impact sockets
Tire bead
  • Knurled bead lock
  • Paintless for maximum tire grip
Contact Patch
  • Maximized fender to wheel lip
  • Full travel control-arm clearance
Barrel design
  • High-clearance
  • Built to clear big brakes

COMPATIBILITY

YEAR MAKE MODEL ENGINE DRIVE
2025+ Audi S5 3.0T Quattro
imgFITMENT NOTES

Engineered specifically for the Audi B10 S5' unique offset geometry.

Designed in-hand with iE B10 S5 sway bars and lowering springs for maximum handling gain.
