Intake Manifold Kit - VW/Audi 2.0T TSi

Intake Manifold Kit - VW/Audi 2.0T TSi

$459.99 CAD

Assembled by UROTuning SKU: 06J133201BH-KT

Add Fuel Rail - VW/Audi 2.0 TSi?: No

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

06J133201BH-KT

This updated intake manifold kit contains all parts you will need to upgrade to the latest version of the intake manifold. The new third air supply hose included in this kit will connect to the top side of the valve and will prevent dirt and contaminants from entering the valve. The hose installs in the location between coils #2 and #3 with the included bolt.

Common repair to 18447/P2015/008213 Diagnostic Trouble Code (DTC) - Intake Manifold Flap Position Sensor (Bank 1): Implausible Signal.

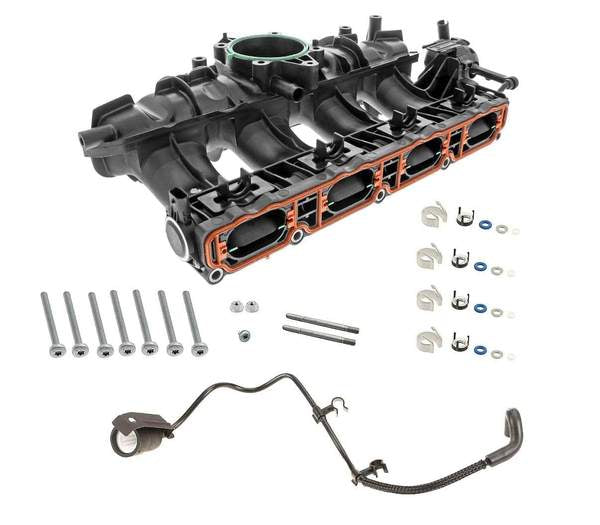

Kit Includes the following:

(4) Fuel Injector O-Ring Kit (Elring)
(1) Intake Manifold (Febi)
(1) Breather Hose (VW/Audi)
(1) Breather Hose Bolt M6x10 (VW/Audi)
(7) Intake Manifold Bolts M6x60 (VW/Audi)
(2) Intake Manifold Studs M6x62 (VW/Audi)
(2) Nuts M6 (VW/Audi)



Part #'s


Fuel Injector O-Ring Kit

06J-998-907-D / 06J998907 D / 06J 998 907 D / 06J998907D x 4

06J-998-907-B / 06J998907 B / 06J 998 907 B / 06J998907B

06J-998-907-A / 06J998907 A / 06J 998 907 A / 06J998907A

06J-998-907 / 06J 998 907 / 06J998907


Intake Manifold

06J-133-201-BH / 06J133201 BH / 06J 133 201 BH / 06J133201BH

06J-133-201-AD / 06J133201 AD / 06J 133 201 AD / 06J133201AD

06J-133-201-AL / 06J133201 AL / 06J 133 201 AL / 06J133201AL

06J-133-201-AS / 06J133201 AS / 06J 133 201 AS / 06J133201AS

06J-133-201-BD / 06J133201 BD / 06J 133 201 BD / 06J133201BD

06J-133-201-BE / 06J133201 BE / 06J 133 201 BE / 06J133201BE

06J-133-201-G / 06J133201 G / 06J 133 201 G / 06J133201G

6J1-332-01B-H / 6J133201B H / 6J1 332 01B H / 6J133201BH


Breather Hose

06H-133-583-F / 06H133583 F / 06H 133 583 F

6H1-335-83F / 6H1 335 83F / 6H133583F


Breather Hose Bolt  (M6x10)

N10-773-201 / N10 773 201

N10-756-001 / N10 756 001 / N10756001


Intake Manifold Bolts (M6x60)

N91-089-601 / N91 089 601 / N91089601 x 7


Intake Manifold Studs (M6x62)

N10-277-103 / N10 277 103 / N10277103 x 2

N10-277-101 / N10 277 101 / N10277101


Nuts M6

N01-508-210 / N01 508 210 / N01508210 x 2



This Part Fits The Following Vehicles

IMPORTANT FITMENT NOTE!

VEHICLES WITH ORIGINAL FUEL RAIL MAY REQUIRE 06J133317AB

TSI ENGINES ONLY
MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
Audi A3 8P (2005-2013) 2.0T TSI (2008.5+) FWD
Audi A3 8P (2005-2013) 2.0T TSI (2008.5+) Quattro
Audi TT Mk2 (2008-2015) 2.0T TSI FWD
Audi TT Mk2 (2008-2015) 2.0T TSI Quattro
Volkswagen Beetle (2012-2019) 2.0T
Volkswagen CC (2009-2017) 2.0T
Volkswagen EOS (2007-2015) 2.0T
Volkswagen Mk5 (2006-2009) GTI 2.0T TSI (2008.5+)
Volkswagen Mk5 (2006-2010) Jetta 2.0T TSI (2008.5+)
Volkswagen Mk5 (2006-2010) GLI 2.0T TSI (2008.5+)
Volkswagen Mk6 (2010-2014) GTI 2.0T
Volkswagen Mk6 (2011-2014) GLI 2.0T GLI (2012-2013)
Volkswagen Passat B6 (2006-2010) 2.0T
Volkswagen Tiguan 1 (2009-2011) 2.0T 4Motion
Volkswagen Tiguan 1 (2009-2011) 2.0T FWD
Volkswagen Tiguan 2 (2012-2017) 2.0T 4Motion
Volkswagen Tiguan 2 (2012-2017) 2.0T FWD
