JKS Manufacturing Jeep Cherokee XJ HD Front Unibody Reinforcement Plates

JKS Manufacturing Jeep Cherokee XJ HD Front Unibody Reinforcement Plates

$346.48 CAD

JKS Manufacturing SKU: jksJKSOGS962

Description Availability

JKSOGS962

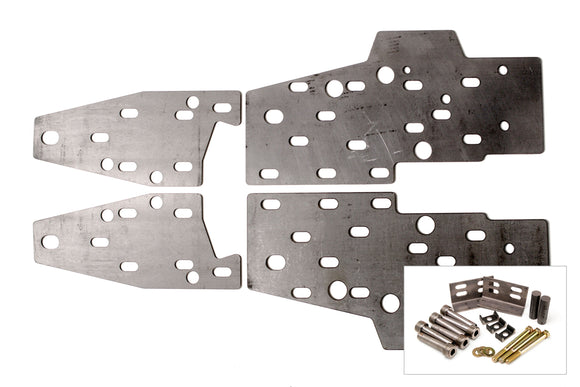

Add structural reinforcement to your Jeep Cherokee XJ with JKS Unibody and Steering Reinforcement Braces. The weld-on system includes inner and outer chassis reinforcement plates; steering box brace, support sleeves, tow hook support bracket and hardware. The unibody chassis on Jeep Cherokee XJ models is constructed of multiple sheet metal layers that are formed and spot welded together. When subjected to off-road torsional forces, the chassis develops small fatigue fractures in high stress locations. The power steering gear mount is particularly vulnerable, due to the tremendous leverage required to control large tires in off-road conditions. Plates attach directly to inside and outside of chassis rail. Heavy gauge steel construction. Bare metal. Weld-on.

Features & Benefits

  • Chassis plates reinforce most vulnerable section of chassis to prevent failure of vital steering function
  • Provides additional steering gear support necessary for large tires and off-road conditions
  • Ensures proper load distribution during winching and recovery operation particularly important on uni-body vehicles
  • Improves integrity of winch and bumper mounts, and strengthens and repositions OE tow hook provision for improved off-road clearance
  • Prevents the need for crude or expensive repair of steering gear mount common with failure on the trail
  • Replaces corrosive and failure prone steering gear hardware with quality, long-lasting materials
Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1984 Jeep Cherokee ALL ALL ALL N/A
1985 Jeep Cherokee ALL 4WD ALL N/A
1986 Jeep Cherokee ALL 4WD ALL N/A
1986 Jeep Comanche ALL 4WD ALL Front Rearward
1987 Jeep Cherokee ALL 4WD ALL N/A
1987 Jeep Comanche ALL 4WD ALL Front Rearward
1988 Jeep Cherokee ALL 4WD ALL N/A
1988 Jeep Comanche Base 4WD ALL Front Rearward
1988 Jeep Comanche Chief 4WD ALL Front Rearward
1988 Jeep Comanche Laredo 4WD ALL Front Rearward
1988 Jeep Comanche Pioneer 4WD ALL Front Rearward
1989 Jeep Cherokee ALL 4WD ALL N/A
1989 Jeep Comanche Base 4WD ALL Front Rearward
1989 Jeep Comanche Pioneer 4WD ALL Front Rearward
1990 Jeep Cherokee ALL 4WD ALL N/A
1990 Jeep Comanche ALL 4WD ALL Front Rearward
1991 Jeep Cherokee ALL 4WD ALL N/A
1991 Jeep Comanche ALL 4WD ALL Front Rearward
1992 Jeep Cherokee ALL 4WD ALL N/A
1992 Jeep Comanche ALL 4WD ALL Front Rearward
1993 Jeep Cherokee ALL 4WD ALL N/A
1994 Jeep Cherokee Country 4WD ALL N/A
1994 Jeep Cherokee SE 4WD ALL N/A
1994 Jeep Cherokee Sport 4WD ALL N/A
1995 Jeep Cherokee ALL 4WD ALL N/A
1996 Jeep Cherokee ALL 4WD ALL N/A
1997 Jeep Cherokee ALL 4WD ALL N/A
1998 Jeep Cherokee ALL 4WD ALL N/A
1999 Jeep Cherokee ALL 4WD ALL N/A
2000 Jeep Cherokee ALL 4WD ALL N/A
2001 Jeep Cherokee ALL 4WD ALL N/A
