JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils

JSPEC148KFP

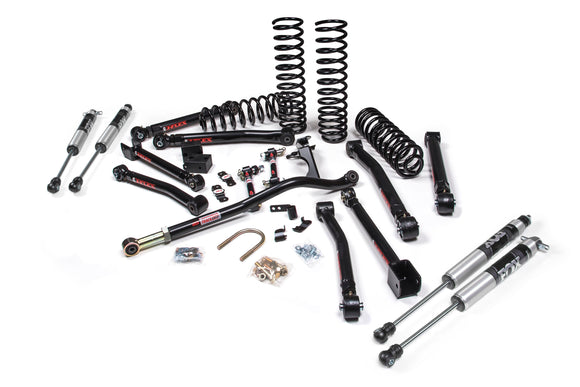

From hardcore rock crawling to high-speed desert, the J-Krawl System brings a level of performance and adjustability that makes it the go to package for many Jeep enthusiasts. These systems build on the base systems and add comments for a full overhaul of the factory suspension to maximum articulation, strength and allow for adjustability. Components include J-Flex or J-Link upper and lower control arms, Jspec dual rate coil springs, an adjustable front track bar, a rear track bar bracket, quicker disconnect front sway bar end links, and bump stop extensions. Choose from a variety of shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5 Performance Series, FOX 2.5 Elite Series and FOX 3.0 Factory Race Series shocks. Each setup ensures superior ride quality, letting you conquer rugged trails while maintaining daily driving comfort. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

Features & Benefits

Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain.
Front/Rear Gas Shocks (FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir, FOX 2.5 Performance Elite, or FOX 3.0 Factory Race Series) specifically valved for this suspension system for improved performance on and off-road.

Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
Front/Rear Bump Stop Extensions to properly limit suspension up travel.
Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
Front/Rear J-Flex Lower Control Arms to add strength and adjustability.
Recommended Tires & Wheels

Rubicon Models
37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Non-Rubicon Models
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)

Picking the Right Coil Springs
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.

Read our Shock Buyers Guide
HERE
Flex Ends:
Forged flex end and jam nut Flex end design allows for 30-degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with our JKS Flex Joint tools (link to tool).

Rubber bushings:
Engineered specifically to reduce NVH characteristics (Noise, vibration, harshness), these factory style maintenance-free rubber bushings come pre-installed at both ends and will ensure a quiet, controlled ride with hassle-free operation in any environment.
