Katech Gen V LT & LS Wet Sump Engine Timing Chain Guide

Katech Gen V LT Timing Chain Guide

Durable Timing Chain Control with Factory GM Tensioner Compatibility

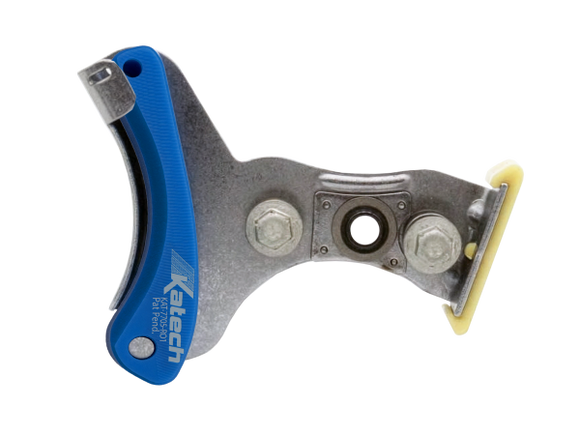

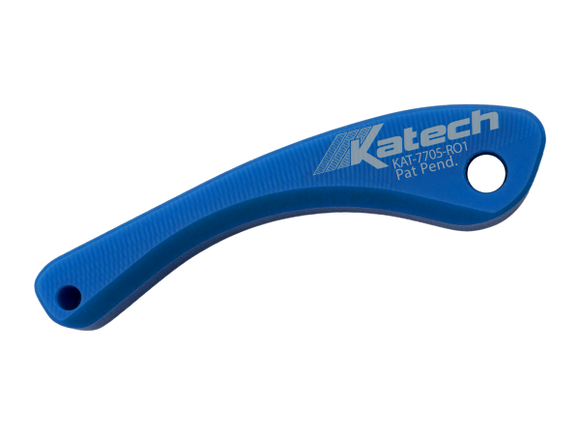

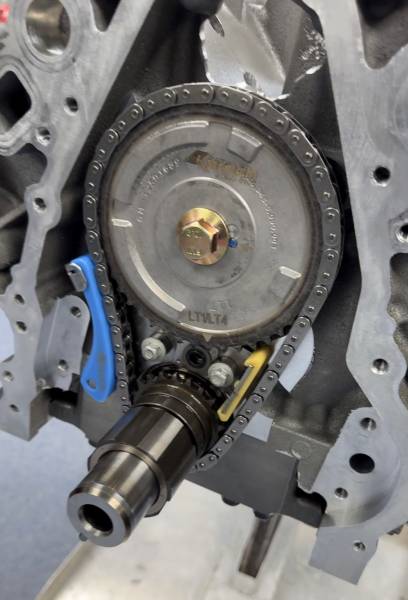

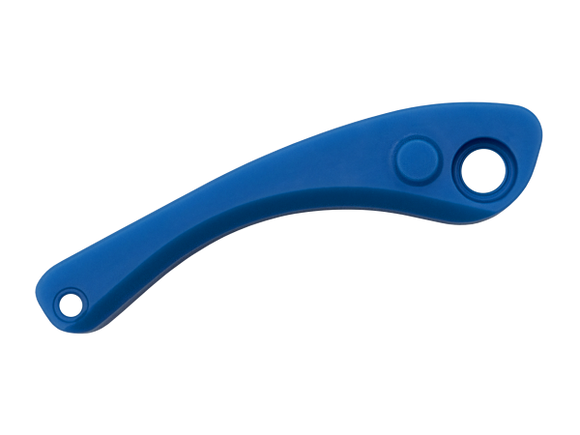

The Katech Gen V LT Timing Chain Guide is engineered as a durable, direct-fit replacement for the factory timing chain guide used in the GM Gen V LT timing chain tensioner assembly. Designed to install directly into the OEM GM timing chain tensioner housing, it retains the factory O-ring oil feed to the oil pump while providing the durability and quality expected from Katech.

Manufactured from advanced wear- and temperature-resistant materials, the Katech Gen V LT Timing Chain Guide is built to withstand demanding engine operating conditions. It is suitable for street, performance, and competition applications, whether replacing a worn factory guide or assembling a high-performance engine.

The guide may also be used in compatible wet sump LS engines originally equipped with a timing chain tensioner when installed with a Gen V LT timing chain tensioner bracket.

Features & Benefits

• Direct Replacement for the Factory GM Gen V LT Timing Chain Guide
• Installs Directly into the OEM GM Timing Chain Tensioner Housing
• Retains the Factory O-Ring Oil Feed to the Oil Pump in Gen V LT Applications
• Manufactured from Wear and Temperature-Resistant Materials
• Suitable for Street, Performance, and Competition Applications
• Designed for Durability Under Demanding Operating Conditions
• Patent Pending Design

Engine Fitment

Compatible Engine Applications

• GM Gen V LT Engines Equipped with the Factory Timing Chain Tensioner Assembly
• Wet Sump LS Engines Originally Equipped with a Timing Chain Tensioner When Used with a Gen V LT Timing Chain Tensioner Bracket

Important Fitment Notes

• Direct replacement for the factory GM Gen V LT timing chain guide.
• Installs directly into the OEM GM timing chain tensioner housing.
• Retain the O-ring seal for Gen V LT applications to maintain the factory oil feed to the oil pump.
• Remove the O-ring seal before installation in compatible wet sump LS applications.
• A Gen V LT timing chain tensioner bracket is required for LS applications.
• Does NOT fit dry sump LS engines
• Verify timing chain alignment, guide installation, and engine compatibility before final assembly.

What's Included

• (1) Katech Gen V LT Timing Chain Guide

Why Choose Katech?

Katech has spent decades engineering championship-winning engines and developing premium components for demanding performance applications. The Katech Gen V LT Timing Chain Guide combines OEM housing compatibility with wear- and temperature-resistant construction to provide a durable replacement for street, performance, and competition engine builds.
