Manley Subaru WRX EJ205/STi EJ257 130.5mm H Beam Connecting Rod SINGLE

15024-1

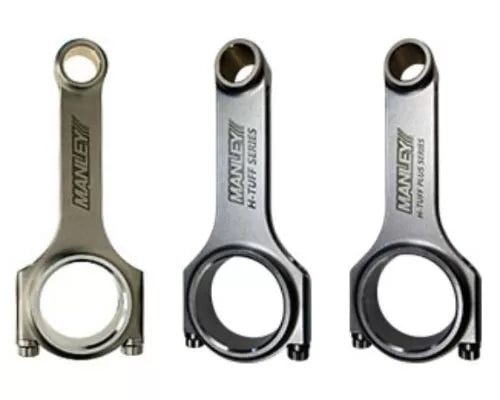

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.

Specification:

• Center-to-Center: 5.137"
• Big End Bore: 2.165"
• Big End Width: .840"
• Pin Diameter: .9055" (23mm)
• Pin Bore: .9063"
• Gram Weight: 575

Fitments:

• Subaru WRX EJ20 / STi EJ25 - H-Tuff Series with heavier beam for higher boost applications

Notes:

• Sold individually
