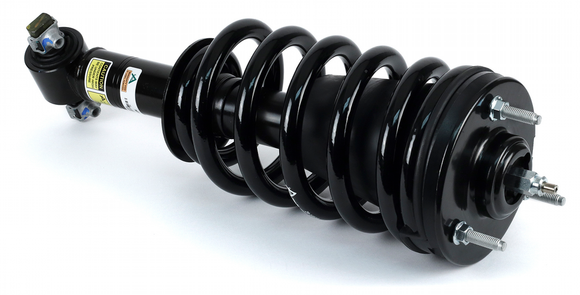

Magnetic Strut Front 07-14 Cadillac, Chevrolet, GMC SUVs (GMT9xx) - SWB/LWB, w/MagneRide Front axle, lower

Magnetic Strut Front 07-14 Cadillac, Chevrolet, GMC SUVs (GMT9xx) - SWB/LWB, w/MagneRide Front axle, lower

$1,414.80 CAD

Arnott SKU: MR-3568

Description Availability

MR-3568

Magnetic Suspension Strut

MR-3568 is a new universal fit magnetic coil-over strut assembly for long and short wheelbase 2007-2014 GM SUVs (GMT9XX Platform) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled loaded strut from Arnott is a direct OE replacement. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil containing iron particles that are easily magnetized. The damper includes an electromagnetic coil which, when turned on, causes the magnetized iron particles to act in a way that changes the effective viscosity (and stiffness) of the suspension. Arnotts new universal magnetic strut, which fits the left or right side, connects to the vehicles ECU with no modifications. This product is pre-assembled for safety with a new steel coil spring, upper strut mount, bump stop, spring seat and isolator. WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

  • OE replacement GM magnetic coil-over strut assembly
  • OES design & components
  • Connects to ECU
  • Universal strut fits left or right side
  • Pre-assembled with a new steel coil spring
  • New spring seat, isolator and mounting hardware
  • Installation manual available
  • 2-Year Warranty
  • Replace in Pairs
Active Or Passive Suspension: Active
Adjustable: No
Adjustable Compression: No
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 115 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 444.5 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 552.45 (mm)
Gas Charged: No
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Monotube
Internal Damper Type: Magnetic
Lower Mount Type: Cross Pin
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Outer Housing Diameter: 115 (mm)
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 107.95 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Cadillac Escalade 2008-2014
Cadillac Escalade ESV 2008-2014
Cadillac Escalade EXT 2008-2013
Chevrolet Suburban 1500 2008-2014
Chevrolet Tahoe 2008-2014
GMC Yukon 2008-2014
GMC Yukon XL 1500 2008-2014

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
19300066 General Motors
19353951 General Motors
19420992 General Motors
25940740 General Motors
