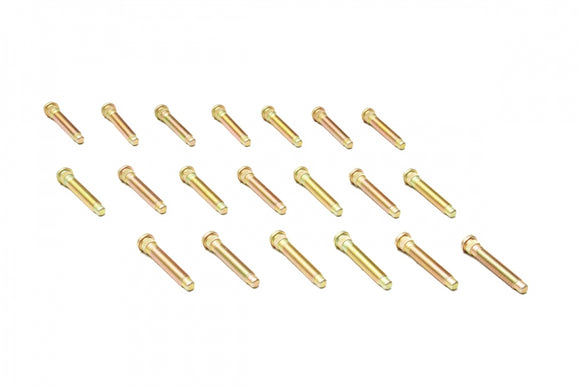

Extended Wheel Studs for Scion FR-S 2013+ / Subaru BRZ 2013+ – 20pcs

MRS-SC-0693

Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.

Applications:
– Scion FRS / Subaru BRZ 2013+

– Package of 20 Extended Wheel Studs

Thread Size: 12mm x 1.25RH
Knurl Size: 14.50mm
Thread Length: 52mm

Overall dimension of stud (see diagram)
D1: 18.75mm
D2: 12.10mm
D3: 12mm

L1: 5.50mm
L2: 8.50mm
L3: 5.50mm
L4: 62mm

*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.
