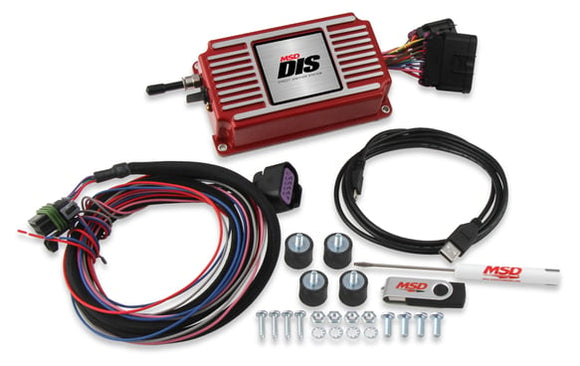

MSD DIS. Direct Ignition System Control. RED

$935.15 CAD

Shipping calculated at checkout

MSD SKU: MSD6015MSD

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

6015MSD

Overview
Timing is digitally controlled ensuring precision accuracy at all RPM's and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check. Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out. Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower.

Features:

  • Preprogrammed timing maps
  • Single Timing Step Retard ideal for pulling timing for nitrous applications
  • Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
  • Programmable Max Rev and Launch RPM limiters provide engine protection
  • Optional temperature sensor input to control timing based on temperature
  • Consistent holeshots thanks to a Programmable Launch Timing Retard
  • Easily programmable through a Mini-USB communication port
  • Individual Cylinder Timing (ICT) allows precise tuning
  • Data acquisition allows you to keep an eye on all aspects of the ignition
  • Fully Programmable 2D and 3D Timing maps provide complete timing control
  • Easily convert to a Coil-Per-Plug ignition system
  • Fully potted electronics and sealed connectors for maximum durability
  • Complete kits with all required components available
