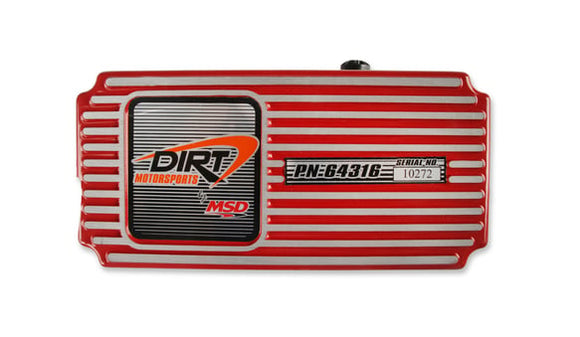

MSD MSD 6ALN Ignition Control. Mag/Pts. Dirt

MSD MSD 6ALN Ignition Control. Mag/Pts. Dirt

$995.21 CAD

Shipping calculated at checkout

MSD SKU: MSD64316

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

64316

Overview
The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure. Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.

Features:

  • Clear plastic base plate for easy tech inspection
  • 6-pin Weathertight connector, mandatory for NASCAR use
  • 110 millijoules per spark up to 15,000 RPM
  • Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
  • Supplied with rubber shock mounts
  • Built-in Soft Touch Rev Control is fixed to 7,600 RPM
  • 470 primary voltage output to coil
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • Multiple spark, capacitive discharge ignition control
  • Works on 12 - 18 volt electrical system
  • Multiple sparks for 20 degrees of crankshaft rotation
  • Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
  • Circuit board is encased in a clear two part silicone elastomer
