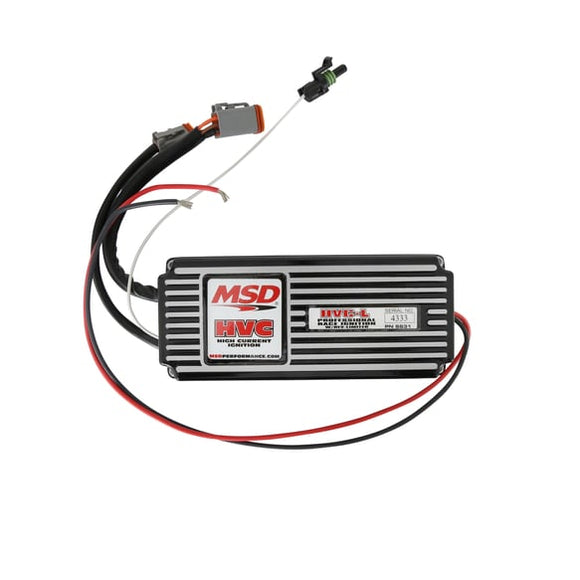

MSD MSD 6 HVC. Professional Race. with Fast Rev Limiter. Deutsch Connector

MSD MSD 6 HVC. Professional Race. with Fast Rev Limiter. Deutsch Connector

$1,308.38 CAD

Shipping calculated at checkout

MSD SKU: MSD6631

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

6631

Overview
The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter. Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

Features:

  • 150 millijoules per spark up to 15,000 RPM
  • Built-in reverse polarity protection circuit
  • Must be used with HVC Coil PN 8250
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • 6-pin Weathertight connector, mandatory for NASCAR use
  • No CARB Exemption Order Number
  • 15,000 RPM with 14.4 Volts
  • Multiple sparks for 20 degrees of crankshaft rotation
  • Includes built-in Fast rev limiter
  • 12-18 Volts, Negative Ground
  • Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
  • 550 primary voltage output to coil

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks (Can Be Longer). This means the product is special ordered.

In General Special orders cannot be canceled, although some brands and suppliers allow it with a restocking fee and or return shipping.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
