XMXGSLISH0
MXG Strada Light street icons version + 23 pins standard harness
|
MX Series
|
|
MXG Strada Light belongs to the MX Family, a complete range of TFT Dash & Loggers designed for Motorsport from AiM. Click here to explore the main features of the MX Series.
|
| Display |
7” TFT
|
| Resolution |
800x480 pixels
|
| Contrast |
1,000:1
|
| Brightness |
700cd/m2 - 1,100 Lumen
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
8 configurable RGB LEDs
|
| Shift lights |
10 configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| External modules |
GPS09c, ACC3, LCU Series, SmartyCam Series
|
| Analog inputs |
4 fully configurable, max 500 Hz each
|
| EXT video inputs |
1 PAL-NTSC
|
| Second CAN |
Yes
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|

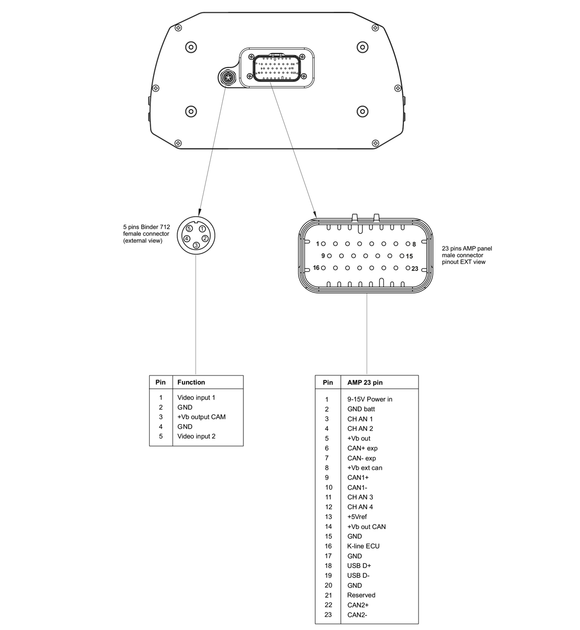

| Connectors |
1 AMP connector + 1 Binder connector
|
| Power consumption |
400 mA
|

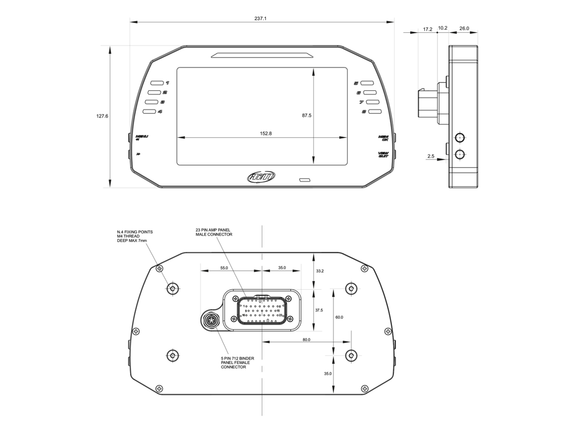

| Dimensions |
237.1 x 127.6 x 26.0 mm
|
| Weight |
850 g
|
| Waterproof |
IP67
|
| AVAILABLE KITS | ||||||||||||||
|
All kits include: MXG Strada Light (standard or street icons version), 23 pins standard or full harness, Amphenol-Mini USB Adapter, USB-Mini USB cable.
User manual & RaceStudio 3 software freely downloadable here. |
||||||||||||||
|
||||||||||||||
