OBD2 Cable For VAD28/32/32S - Universal | CC22700

With it the installation is done in a few minutes all OBD 2 values can be shown on the display! Also engine error codes can be displayed!

Note: To display up to 64 OBD2 values, you have to install the display with the VADpro OBD 2 cable to the vehicle, then read out the PID's with the display, then enter the PID's via the online DBC converter and name them individually and save them on the Micro SD card in an individual tri.file.

Key Facts:

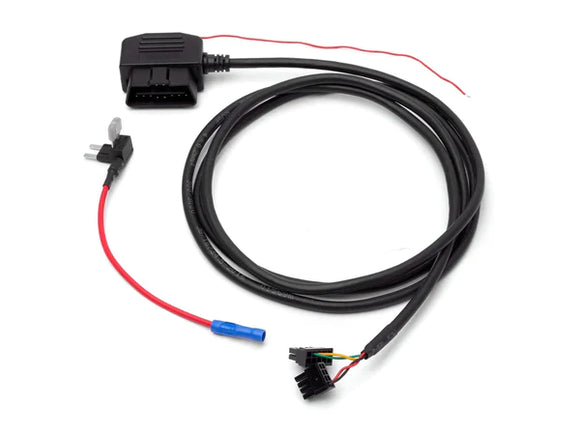

- OBD plug with 2m cable for connection to a MFD28/MFD32/MFD32S
- The following pins are led from the OBD plug to the display: Positive supply, ground (Pin 4+5), Can High (Pin 6), Can Low (Pin 14)
- The 12V+ cable is led out separately at the connector (approx. 15cm) and must be connected to a free fuse location on the fuse box. If there is no more free space, a large and a mini-adapter are included in the delivery.

Supported values:
All OBD2 values that the control unit outputs. Only a maximum of 64 values can be fed into the display.
