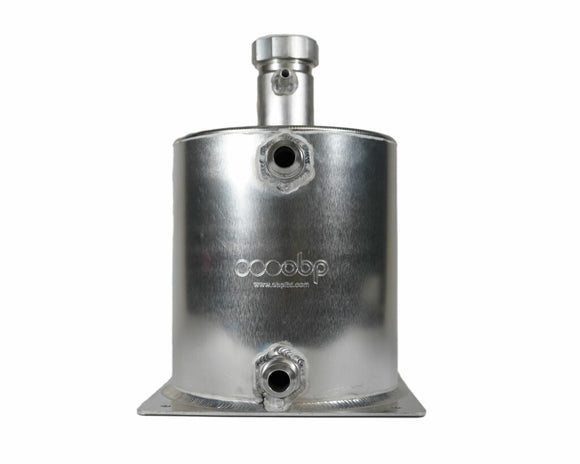

1 Gallon Dry Sump Oil Tank (D)190mm x (H)210mm, 2 x JIC 12, 1 x 10mm Breather, 50mm Screw Cap Filler

OBPDS01 SPECIAL ORDER FROM UK. PLEASE ALLOW 3-4 WEEKS FOR OVERSEAS SHIPMENT

OBP Alloy Dry Sump Tank – 1 to 3 Gallon Capacities
High-Performance Aluminium | Baffled | JIC Fittings | UK Made

The OBP Alloy Dry Sump Tank is a vital component in a dry sump oil system, which is commonly used in motorsport and high-performance engines to maintain consistent oil pressure, especially under extreme conditions such as hard cornering, acceleration, and braking. Unlike traditional wet sump systems, a dry sump setup stores oil externally in a dedicated tank, eliminating the risk of oil starvation and improving overall engine reliability.

Our dry sump tanks are universally designed to suit a wide range of applications and are handmade in the UK using 2mm high-grade aluminium. Each tank includes an internal baffle system to reduce oil surge, a 50mm screw cap filler neck, and JIC male fittings for leak-free, high-flow connections. Every unit is pressure tested to ensure durability and dependable performance in even the harshest racing environments.

🔧 What Is a Dry Sump Tank Used For?

A dry sump tank stores and manages the engine’s oil outside the crankcase. It works as part of a dry sump lubrication system, allowing scavenger pumps to collect oil from the engine and deliver it back to the tank. This system prevents oil starvation during high-G manoeuvres, lowers engine height for a better centre of gravity, and allows for increased oil capacity, making it ideal for race, drift, rally, and high-performance road cars.

Key Features:

• ✅ Designed for Dry Sump Lubrication Systems – Essential for race and high-performance engines

• ✅ Internal Baffling – Prevents oil slosh and surge during aggressive driving

• ✅ 2mm Aluminium Construction – Lightweight yet strong, ideal for motorsport applications

• ✅ Leak-Free JIC Fittings – JIC 12 male inlet and outlet for secure, high-flow oil connections

• ✅ 50mm Screw Cap Filler Neck – Easy oil top-up and access

• ✅ Pressure Tested – Ensures leak-free reliability under race conditions

• ✅ Handmade in the UK – Expertly crafted by OBP Motorsport with rigorous quality control

Available Capacities & Specifications:

🔹 1 Gallon Dry Sump Tank

• Dimensions: Height: 210mm | Diameter: 190mm

• Inlet / Outlet: JIC 12 Male

• Breather: 10mm Push-On

• Filler Neck: 50mm Screw Cap

🔹 1.5 Gallon Dry Sump Tank

• Dimensions: Height: 270mm | Diameter: 190mm

• Inlet / Outlet: JIC 12 Male

• Breather: 10mm Push-On

• Filler Neck: 50mm Screw Cap

🔹 2 Gallon Dry Sump Tank

• Dimensions: Height: 356mm | Diameter: 190mm

• Inlet / Outlet: JIC 12 Male

• Breather: 10mm Push-On

• Filler Neck: 50mm Screw Cap

🔹 2.5 Gallon Dry Sump Tank

• Dimensions: Height: 410mm | Diameter: 190mm

• Inlet / Outlet: JIC 12 Male

• Breather: 10mm Push-On

• Filler Neck: 50mm Screw Cap

🔹 3 Gallon Dry Sump Tank

• Dimensions: Height: 468mm | Diameter: 190mm

• Inlet / Outlet: JIC 12 Male

• Breather: 10mm Push-On

• Filler Neck: 50mm Screw Cap

Whether you’re building a competitive race car, installing a custom dry sump system, or upgrading your existing setup, the OBP Alloy Dry Sump Tank is a reliable and race-proven solution trusted by professionals worldwide.
