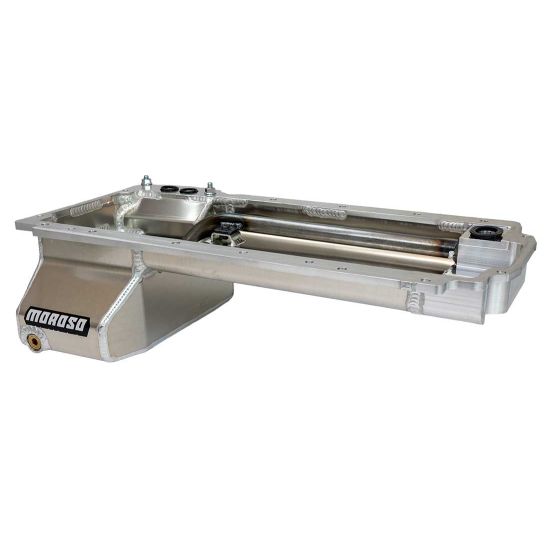

OIL PAN, GM LT, GEN V, SWAP, HIGH CLEARANCE, ALUMINUM, SPIN-ON FILTER ADAPTER

Aluminum, Wet Sump, 6" Deep, 5 Quart Capacity (Plus filter)

Engine Application: GM LT Series Gen V (including LT1, LT4, L82, L83, L84, L86, L87, L8T, L8P, etc.)

Fits:LT Engine Conversions that require high-clearance oil pan; '64-'72 A-Body, '68-'74 X-Body, '67-'69 F-Body, '77-'95 G10/20/30 Van, '71-'77 Vega, '70-72 Monte Carlo, '55-57 Tri-Five, etc. (Check Dimensions)

• Fabricated aluminum construction with billet front cap
• Integrated pickup and O-ring pickup pass-through
• Removable slosh baffle for improved oil control
• Compact sump provides additional clearance in a variety of LT swaps including GM A-Body, G-Body, F-Body, Tri-Five, etc.
• Inboard filter mount for additional clearance with used in conjunction with "block hugger" headers

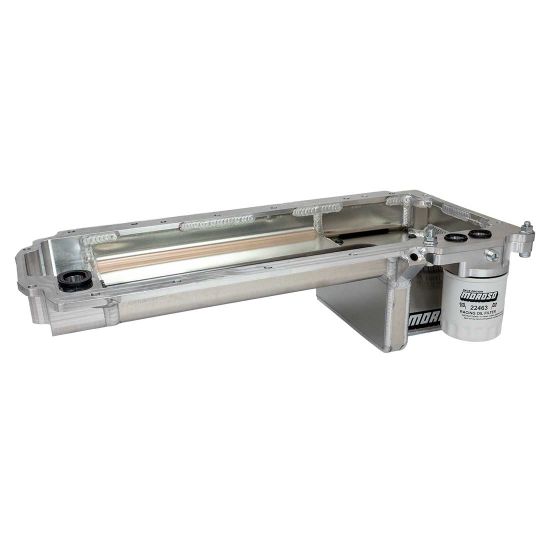

• Includes billet aluminum 22mm spin-on filter mount with 1/4" N.P.T. sensor port and integrated dipstick provision for use with GM Part No. 12652951 Dipstick Tube and 12643278 Dipstick
