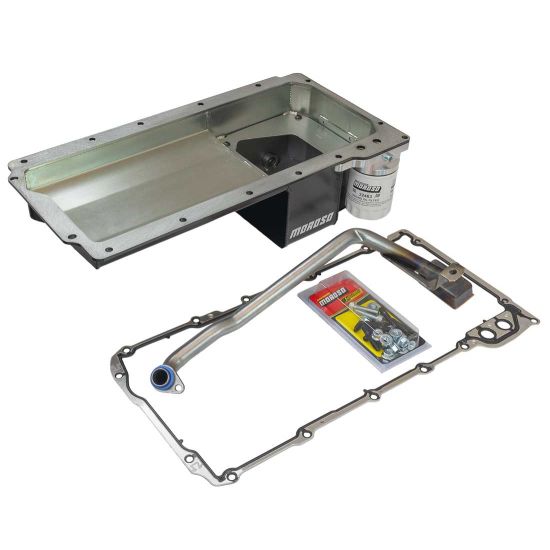

OIL PAN KIT, GM LS, SWAP, HIGH CLEARANCE, STEEL, BLACK POWDER COAT, INCLUDES PICKUP, HARDWARE, GASKET

Steel, Wet Sump, 6" Deep, 4 Quart Capacity (Plus filter)

Engine Application: GM LS Series Gen III & Gen IV

Fits: LS Engine Conversions that require high-clearance oil pan; '64-'72 A-Body, '68-'74 X-Body, '67-'69 F-Body, '77-'95 G10/20/30 Van, '71-'77 Vega, '70-72 Monte Carlo, '55-57 Tri-Five, etc. (Check dimensions)

• Clears 4.25" stroke with most steel rods
• Removable anti-slosh baffle for improved oil control
• Includes billet aluminum 22mm spin-on oil filter mount with 1/4" N.P.T. sensor port (filter sold separately)
• Fabricated steel with black powder coat finish by Moroso Powder Coating
• Compact sump and beveled edges provide additional clearance in a variety of LS swaps including GM A-Body, G-Body, F-Body, Tri-Five, etc.
• Inboard filter mount for additional clearance with used in conjunction with "block hugger" headers
• Includes oil pick up, oil pan mounting stud kit and oil pan gasket to complete installation
• Uses LS car application dipsticks
