Oil Pan Replacement Kit - Audi 2.0T / B8 A4/ A5 / Q5

This Kit provides every part you need to professionally replace the oil pan of you Audi 2.0T TSI .

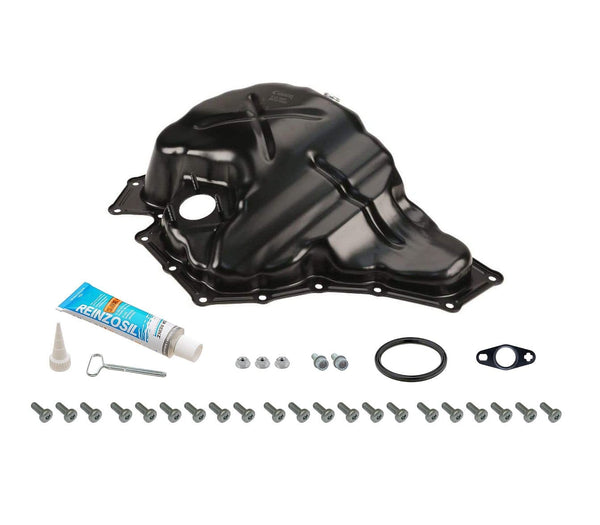

Kit Includes:

• Oil Pan (Rein)
• Oil Level Sensor O-Ring (Elring)
• (3) Shouldered Nut M6 (VW/Audi)
• (2) Hex Bolt M6x15 (VW/Audi)
• (21) Oil Pan Bolt M6x16 (VW/Audi)
• Turbo Oil Line Gasket (Victor Reinz)
• Oil Pan Gasket Sealer (Victor Reinz)

Part #'s

 Oil Pan

06H-103-600-AA / 06H103600 AA / 06H 103 600 AA / 06H103600AA

06H-103-600-G / 06H103600 G / 06H 103 600 G / 06H103600G

06H-103-600-P / 06H103600 P / 06H 103 600 P / 06H103600P

06H-103-600-R / 06H103600 R / 06H 103 600 R / 06H103600R

6H1-036-00A-A / 6H103600A A / 6H1 036 00A A / 6H103600AA


Oil Level Sensor O-Ring

038-103-196-B / 038103196 B / 038 103 196 B / 038103196B


 Shouldered Nut M6

 N01-508-210 / N01 508 210 / N01508210 x 3


Hex Bolt M6x15

N10-619-201 / N10 619 201 / N10619201 x 2


Oil Pan Bolt M6x16

N91-096-701 / N91 096 701 / N91096701 x 21


Turbo Oil Line Gasket

06F-145-757-L / 06F145757 L / 06F 145 757 L

06F-145-757-H / 06F145757 H / 06F 145 757 H / 06F145757H

06F-145-757-C / 06F145757 C / 06F 145 757 C / 06F145757C


 Oil Pan Gasket Sealer

D17-640-4A2 / D17 640 4A2 / D176404A2
