2017-2021 Civic Type-R FK8 P600 Drop-In Turbocharger Upgrade

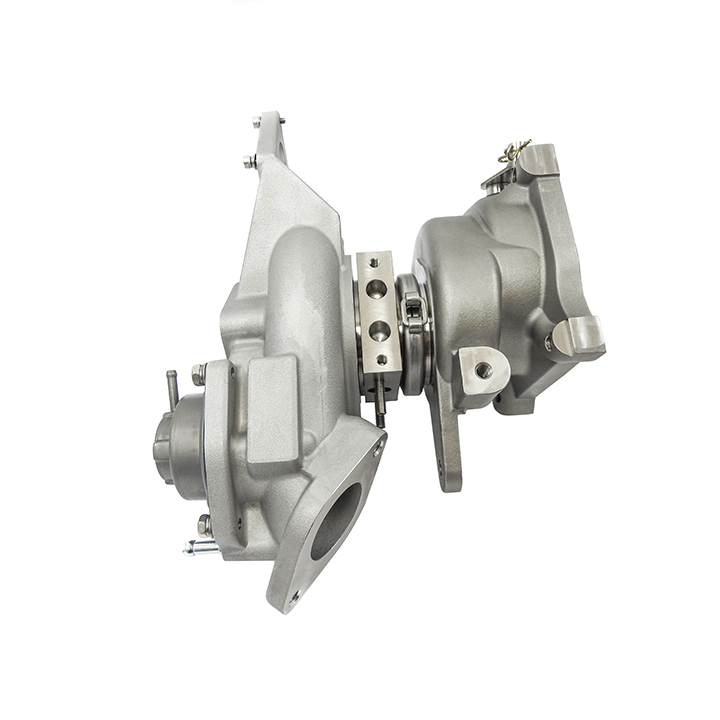

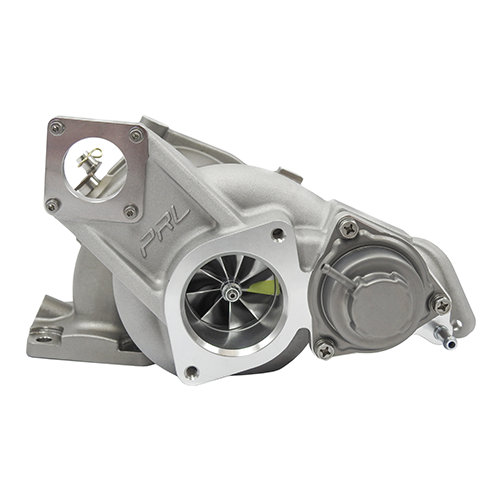

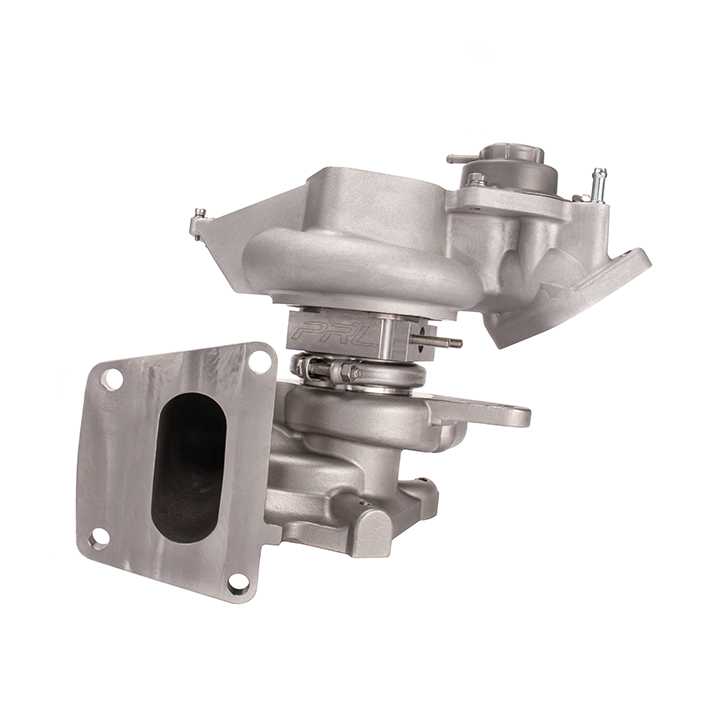

Honda Civic Type-R FK8 P600 Turbocharger Upgrade by PRL Motorsports

The PRL Motorsports P600 Drop-In Turbocharger Upgrade for Turbo FK8 Civic Type-R platform (which can also be installed on the 2.0L Turbo Honda Accord and Acura RDX) offers 600 horsepower capabilities for Honda's 2.0L Turbo K20C Engines without sacrificing spool.

A billet 304 stainless steel, dual ceramic ball bearing CHRA was implemented for reduced weight and improved durability. Factory oil and coolant lines are retained, as well as the factory bypass valve and wastegate actuator. Increased cooling capacity has been provided by the CHRA's larger water jacket.

Our High Efficiency compressor wheel is significantly taller than most billet compressor wheel upgrades and features the latest technology in aerodynamics (tapered tip exducer, cutback design on blade top edge) for optimal spool and power. This High Efficiency Turbine Wheel also features the latest technology in aerodynamics for optimal spool and power.

Features

• Billet 304 Stainless Steel, Dual Ceramic Ball Bearing CHRA
• Cast Aluminum, Stock Location Compressor Housing

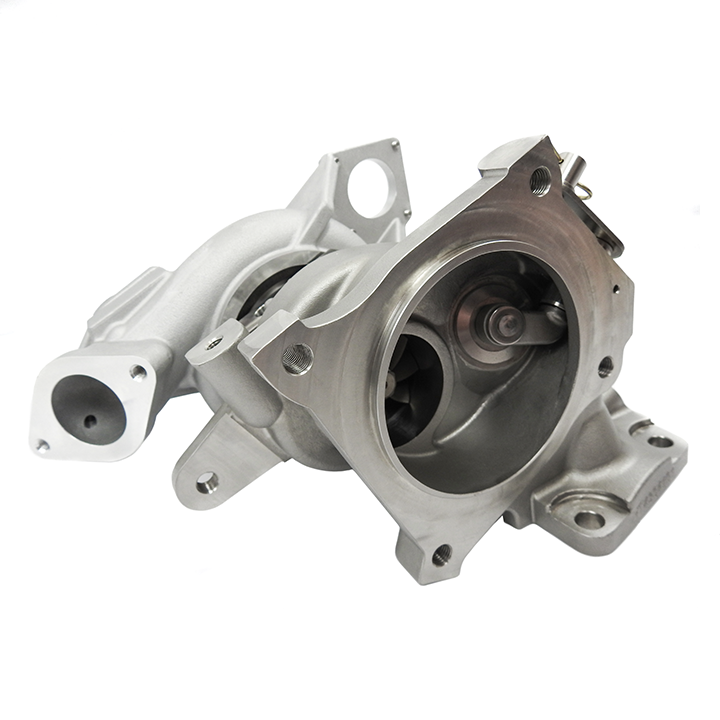

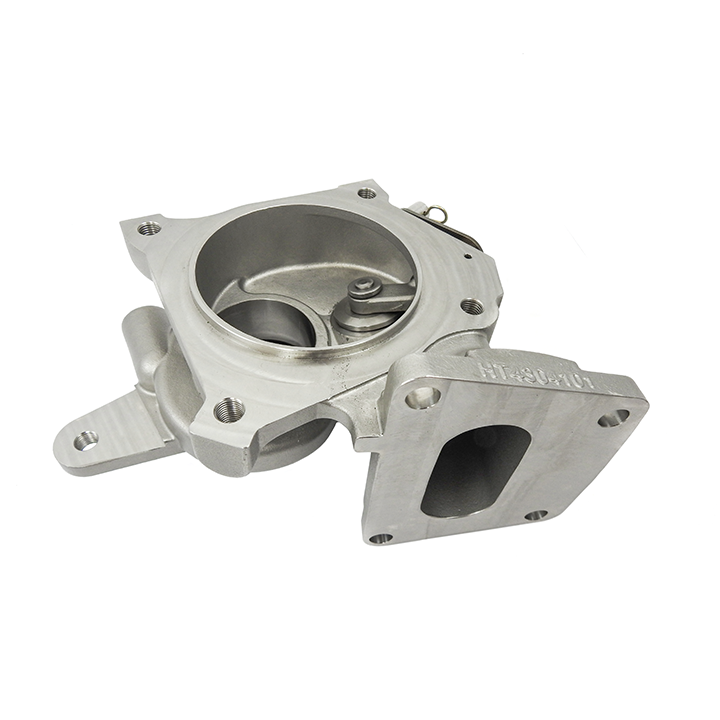

• Cast 304 Stainless Steel Turbine Housing
• High Efficiency Point-Milled 9-Blade Billet 7075 Aluminum Compressor Wheel (54mm Inducer, 67mm Exducer)
• High Efficiency Inconel 713C 9-Blade Turbine Wheel (54mm Inducer, 49mm Exducer)

Benefits

• Offers 600HP capabilities without sacrificing spool
• Increased cooling capacity
• Highly efficient with the latest aerodynamic technology

Please Note: This product requires a tune

Applications

• 2017 - 2020 Honda Civic Type-R FK8
• 2018 - 2020 Honda Accord 2.0T (with install kit or modification)
• 2018 - 2020 Acura RDX 2.0T (with install kit or modification)

What's In The Box?

• 1 - P600 Turbocharger Assembly
• 1 - Premium Mounting Hardware Kit (Studs, Nuts & Bolts for Turbocharger-to-Cylinder Head &Turbocharger-to-Downpipe Connections)
• 1 - Gasket Kit (Turbine Inlet, Turbine Outlet, Compressor Inlet, Oil Feed, Oil Return, Coolant Line)
• 1 - Oil Feed Filter/O-Ring Assembly
• Oil Feed Crush Washers

References

• Dyno Testing Data

Warranty

• Manufacturer Standard Warranty
