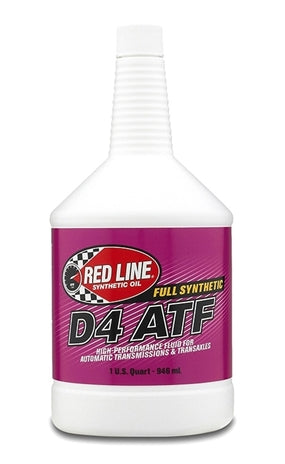

Red Line D4 ATF - Quart

30504

• Our most versatile ATF, use where Dexron III®, Dexron II®, Mercon® and Mercon V® fluids are recommended, for use in automatic, manual transmissions and power steering
• Popular applications: Toyota Type T-III and T-IV, Honda ATF-Z1, Nissan Matic D, J & K, Diamond SP-II, SP-III, Mazda ATF M-V, most BMW and Audi/VW automatic transmissions
• Also used with manual transmissions and transaxles like T-5, T-45, T-56 and late-model BMW, provides a GL-4 level of gear protection
• Excellent cold weather operation
  Since most GL-5 gear oils for differentials are too slippery for manual transmissions, Red Line offers these products that ensure proper shifting while providing ultimate wear protection

  • Appropriate coefficient of friction for most manual transmission synchronizers (other's synthetic gear oils are often too slippery for proper synchro engagement)
  • Red Line offers lubricants to pinpoint nearly every transmission application
  • MT-LV, MTL, MT-85 & MT-90 are not for use in differentials with hypoid gears
  • Excellent gear and synchro protection, balanced slipperiness for easier shifting in cold climates
  • Excellent for high- and low-mile transmissions
  • Compatible with petroleums and other synthetics

  DATA SHEET DOWNLOADS

  • Safety Data Sheets
  • Product Data Sheets

  TYPICAL PROPERTIES

  SAE Viscosity Grade (Motor Oil)	0W20
  SAE Viscosity Grade (Gear Oil)	70W80
  Vis @ 100°C, CSt	7.5
  Vis @ 40°C, CSt	35.4
  Viscosity Index	188
  Pour Point, °C	-60
  Pour Point, °F	-76
  Brookfield Viscosity @ -40°C, Poise	52
