Ringer Racing Clutch kit – 1.8t FWD 6 Speed

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

Applications:

• VW GTI 1.8t (2002-2006)
• VW Jetta 1.8t (2002-2006)
• VW Beetle Turbo-S (2002-2006)

* Note: For FWD 1.8t that uses a hydraulic internal Throw-out Bearing – Slave Cylinder *

Kit includes:

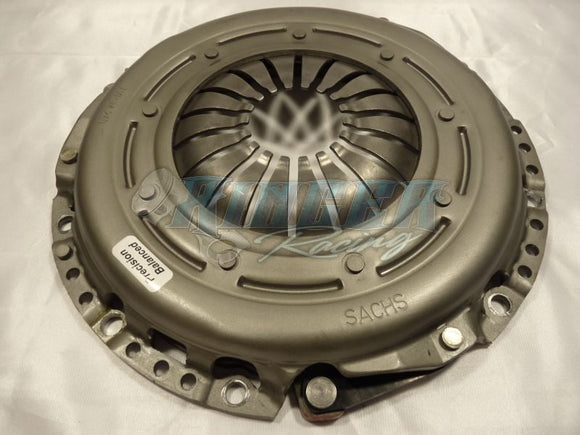

• Ringer Racing pressure plate

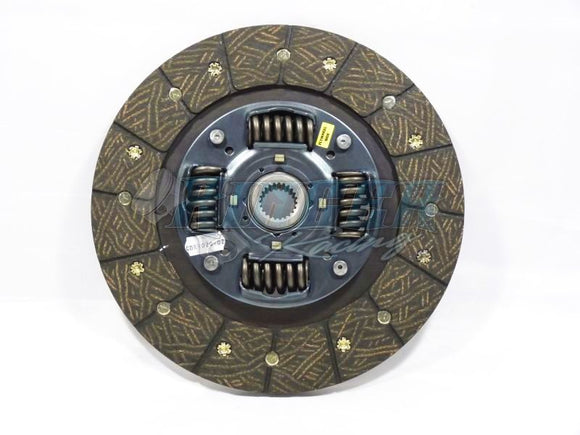

• Ringer Racing disk
• Alignment tool

Kit does not include a throw-out bearing.

*Optional Hydraulics:

• CM Bleeder Block for use with stock line
• CM Bleeder Block kit with SS clutch line (replaces stock line)
• CM Performance Throw-out bearing kit with clutch line (replaces stock line)

Stage 3

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material

Stage 3+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal then Stage 3 and stage 4
• Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then Stage 3 and stage 4

Torque Rating at the Flywheel

• Stage 3 – 575 ft lbs
• Stage 3+ – 635 ft lbs
• Stage 4 – 735 ft lbs
• Stage 5 – 810 ft lbs
