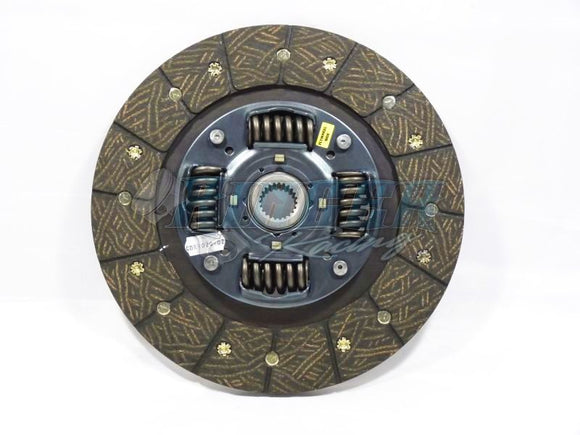

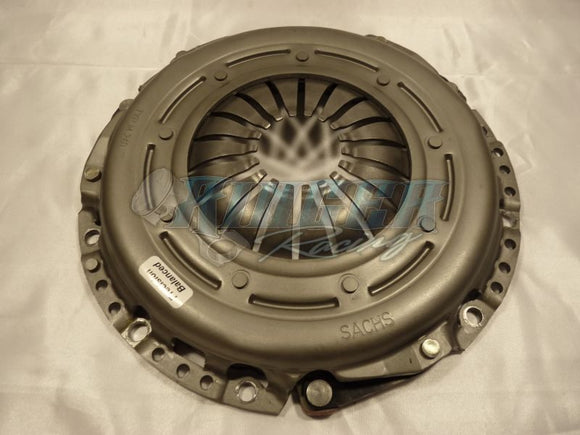

Ringer Racing Clutch Kit for CM Flywheel – Audi/VW 2.0T FSI 6 Speed

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

Applications:

• Audi A3 2.0T FSI (2006-2008)
• VW GTI 2.0T FSI (2006-2009)
• VW Jetta 2.0T FSI (2006-2007)
• VW Scirocco 2.0T (2008+)

To be used with Clutch Masters single mass flywheel FW-020-SF

Kit includes:

• Ringer Racing Clutch Kit
• Alignment tool

Kit does not include a throw-out bearing.

*Optional Hydraulics:

• CM Bleeder Block for use with stock line
• CM Bleeder Block kit with SS clutch line (replaces stock line)
• CM Performance Throw-out bearing kit with clutch line (replaces stock line)

Stage 2

• Heavy-duty daily clutch
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material

Stage 2+

• Heavy-duty daily clutch
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material
• Slightly stiffer pedal then Stage 2

Stage 3

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametallic Material

Stage 3+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametallic Material
• Slightly stiffer pedal then Stage 3 and stage 4
• Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametallic Material on both sides

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametallic Material on both sides
• Slightly stiffer pedal then Stage 3 and stage 4

Torque Rating at the Flywheel

• Stage 2 – 425 ft lbs
• Stage 2+ – 490 ft lbs
• Stage 3 – 575 ft lbs
• Stage 3+ – 635 ft lbs
• Stage 4 – 735 ft lbs
• Stage 5 – 810 ft lbs
