Ringer Racing Clutch Kit for CM Flywheel – VW Golf 2.0 TDI 6 Speed

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

Applications:

• VW Golf 2.0 TDI 6 speed 02Q (2010-2015)
• VW Jetta 2.0 TDI 6 speed 02Q (2009-2015)

For use with Clutch Masters FW-827 steel flywheels only. Does not work with stock dual mass flywheel.

Kit includes:

• Ringer Racing Clutch kit
• Alignment tool

Does not include a throw-out bearing. Option for CM Bleeder Block line kit to be used with OEM/OE style bearing.

Stage 3

• Heavy-duty street & racing system

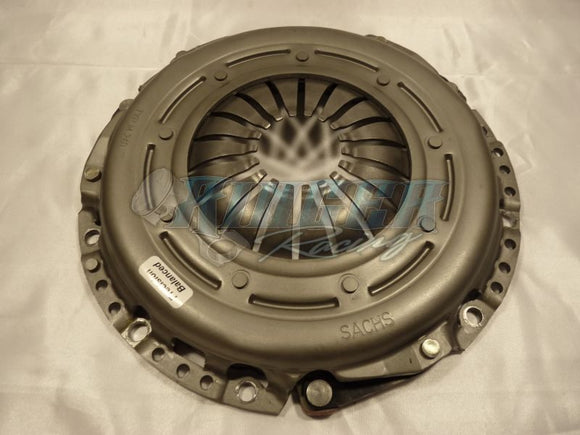

• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting

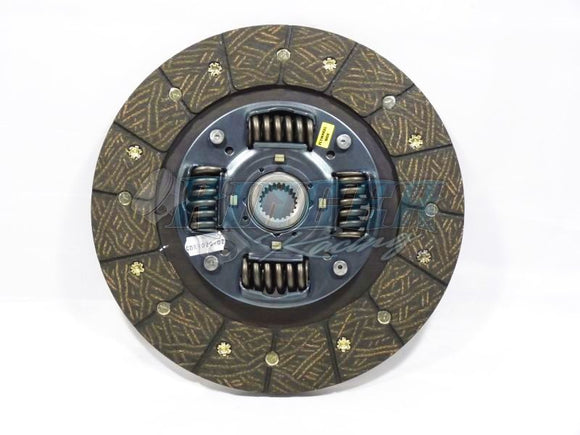

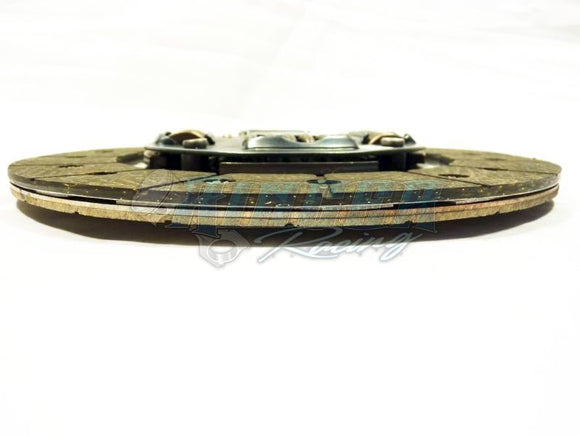

• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material

Stage 3+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal then Stage 3 and stage 4
• Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then Stage 3 and stage 4

Torque Rating at the Flywheel

• Stage 3 – 485 ft lbs
• Stage 3+ – 530 ft lbs
• Stage 4 – 620 ft lbs
• Stage 5 – 680 ft lbs
