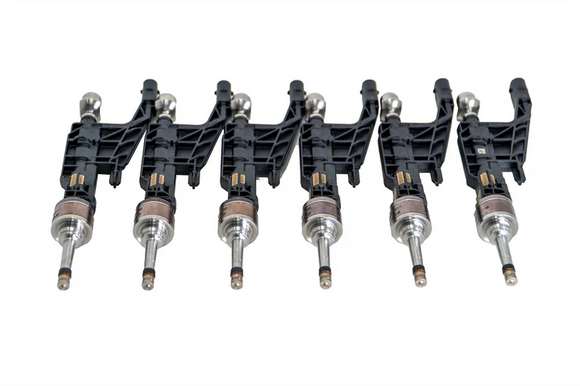

S58 / B58 Gen 2 High Flow Direct Injectors

201-0485

• 26% larger than Stock S58
• 60% larger than Stock B58 Gen 2
• 350 bar fuel pressure capable (fuel rail target), will accommodate normal overpressure in operation
• Direct fit, no harness adapters or spacers required
• Ethanol compatible
• OEM equivalent spray pattern with an 8 hole spray geometry! (see images)
• Every injector is tested statically and dynamically to ensure best quality product and set batching (+/-2%), and tested for Pmax operation and fine leak (tip leak and pressure decay).
• Tuning guide with data for most of the popular tuning suites

• WHP potential on 93:930 WHPWHP
• potential on E85:840 WHP
• Mass Flow Rate (Viscor 16A) @100bar:13.8 g/s
• Flow rate increase over stock B58 Gen 2:60%
• Flow rate increase over stock S58:26%
• Tune required?:Yes
• Supported tuning suites:ECUTek, MHD, BM3Volume
• Flow Rate (nHeptane) @100bar:1144cc/min
