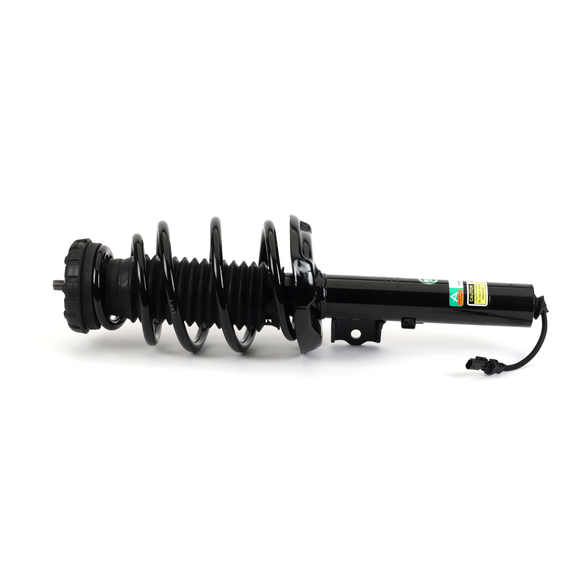

Coil-Over Strut Front 13-17 Cadillac XTS (EPS II)

Coil-Over Strut Front 13-17 Cadillac XTS (EPS II)

$462.00 CAD

Arnott SKU: SK-3393

Description Availability

SK-3393

Coil Strut Assembly

Arnotts exclusive coil over strut (SK-3393) manufactured for the front of the 2013-2019 Cadillac XTS (EPS II). Arnott’s completely new coil over struts are built using quality components including custom-valved internal shocks and new steel coils. These coil over struts are engineered and rigorously tested on dyno machines and driven countless miles on Arnott’s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride. THIS PART SHOULD BE REPLACED IN PAIRS.

  • Converts active to passive
  • Custom valved dampers
  • Engineered and assembled in the USA
  • Universal front fit (left or right)
  • Replace in Pairs THIS PART SHOULD BE REPLACED IN PAIRS.
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 55 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 362 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 519 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Base Cup
New Or Remanufactured: New
Outer Housing Diameter: 55 (mm)
Progressive Spring Rate: Yes
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 157 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Cadillac XTS 2013-2019

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
19300063 Cadillac
22906209 Cadillac
22962890 Cadillac
23101683 Cadillac
23220530 Cadillac
84304674 Cadillac
84547551 Cadillac
84547555 Cadillac
84677093 Cadillac
84684722 Cadillac
