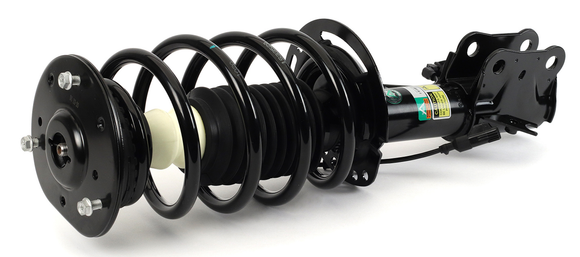

Coil-Over Strut Front Left 13-16 Lincoln MKZ (CD533), Ford Fusion (CD391) 03-09 Mercedes-Benz E-Class (W211) & 05-11 CLS-Class (W219) - Incl. Rear Load-Leveling, Incl.

Coil-Over Strut Front Left 13-16 Lincoln MKZ (CD533), Ford Fusion (CD391) 03-09 Mercedes-Benz E-Class (W211) & 05-11 CLS-Class (W219) - Incl. Rear Load-Leveling, Incl.

$914.40 CAD

Arnott SKU: SK-3600

Description Availability

SK-3600

New Air Suspension Strut

Arnotts exclusive strut (SK-3600) manufactured for the 2013-2016 Lincoln MKZ (CD533) and Ford Fusion (CD391) front left side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.

  • Converts active to passive
  • Custom-valved shock adapted to driving style
  • Improved seals to prevent leaks
  • Electronic to passive shock technology
  • Engineered and assembled in the USA
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 55 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 380 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 525 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Outer Housing Diameter: 55 (mm)
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 145 (mm)
Upper Mount Type: Bolt
Upper Mounting Isolator Included: Yes
Make Model Year
Lincoln MKZ 2013-2016

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
DG9Z18124B Ford
DG9Z18124V Ford
EG9Z18124B Ford
EG9Z18124D Ford
EG9Z18124K Ford
