Superlift 11-19 Chevy Silverado 2500HD - 3in Lift Kit w/ Fox 2.0 Series Shocks

K1010F

Superlift Suspension Systems now available with Base Superlift Shocks or Fox® Shocks:

Superlift’s 3 Inch Lift kit for the 2011-2019 Silverado and Sierra 2500HD and 3500 HD is a simple solution for adding more height than just a “Leveling Kit”.  Superlift’s Upper Control Arm (UCA) Lift kits have a strong, modern die-formed design constructed of solid steel rod, beefy gussets and include a flat mount ball joint cup.  These kits are intentionally over-build to be the best.  Their uniquely engineered design adds strength and durability plus has bonus features that others do not offer.  Superlift’s Silverado and Sierra UCA’s include pre-installed MOOG Ball Joints and Bushings for long lasting performance.  By Using the upper control arms, this lift kit offers a better ride quality and performance over traditional torsion key leveling kits.

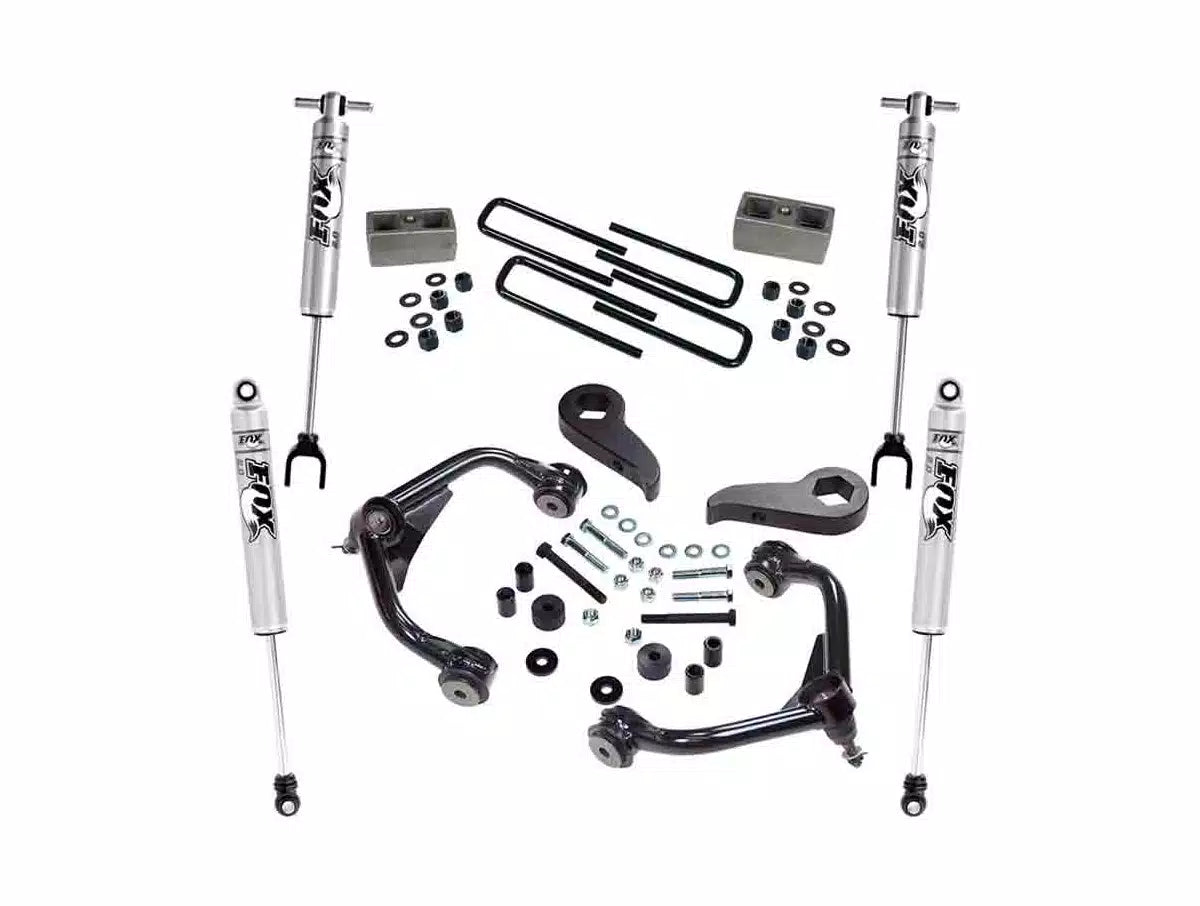

This kit also includes a set of Forged torsion bar keys, differential drop spacers, rear block kit and Shocks – Rear Superlift or Front and Rear Fox Shocks.  All required parts are included to make sure your Silverado or Sierra handles and performs just like a stock truck!

Features:

• A Simple and Super-EX bolt-on installation
• Superlift Shocks- Rear Only or Fox® Performance Series 2.0 IFP Shocks – Front & Rear
• Adds Clearance for 33-35 Inch diameter Tires
• Rear lift is achieved with Block and & U-bolt Kit
• UCAs include pre-installed MOOG® ball joint and bushings
• Backed by our Limited Lifetime Warranty
• Fits 2WD or 4WD applications

Benefits:

• Differential Spacers maintain proper CV axles angles
• Retains OEM caster and camber alignment specifications
• Can be returned to stock with no problems
• CNC machines ball joint socket and bushing eye ring for a precise fit
• Designed using Original Equipment (OE) CAD data for accuracy.
• Compatible with Factory Stabilitrac® and Anti-skid control features (No Problem or irritating dash lights)
• UCA Kits are assembled with MOOG® ball joints that provide great durability & articulation; plus the serviceable design enables lubrication for longer life.
• No Excessive Ball Joint or Steering Components

NOTES:

• This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM.
• If Truck is equipped with overload leaf springs, longer u-bolts are required.  Please call 800-551-4955 to purchase new u-bolts or purchase u-bolt part number 11794.

  Tire	Wheel	Backspacing	Offset
  295/70 R18	Stock 18	-0	-0
  33 x 12.5	18 x 9	5.5 - 5.75	12
  33 x 12.5	20 X 9	5.5 - 5.75	12



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 5 hours
  • Difficulty level: 3 of 5

  NOTE: This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM

  NOTE: If truck equipped with overload leaf springs, longer u-bolts are required.  Please call 800-551-4955 to purchase new u-bolts or purchase u-bolt part number 11794.

  DOWNLOAD INSTALL GUIDE

  • 2011-2019 Chevrolet Silverado 2500 HD With Fox 2.0 Shocks 3 in. Suspension Lift Kit This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 2WD/4WD
  • 2011-2019 Chevrolet Silverado 3500 HD With Fox 2.0 Shocks 3 in. Suspension Lift Kit This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 2WD/4WD
  • 2011-2019 GMC Sierra 2500 HD With Fox 2.0 Shocks 3 in. Suspension Lift Kit This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 2WD/4WD
  • 2011-2019 GMC Sierra 3500 HD With Fox 2.0 Shocks 3 in. Suspension Lift Kit This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 2WD/4WD
