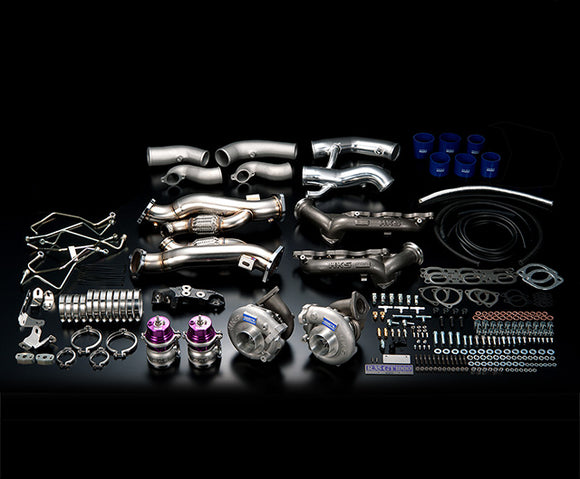

SPECIAL SET UP KIT GT5565_BB R35

14020-AN014

For competition use only. First catalytic converter cannot be installed. Requires fabrication of piping such as for turbine-less setups and suction systems.

A kit based on the FULL TURBINE KIT
with the SYMMETRY GT5565_BB
turbocharger excluded.

This product is a kit based on the FULL TURBINE KIT GT5565_BB (11003-AN019), with the SYMMETRY
TURBINE GT5565_BB (14001-AK077) excluded.
⮚ It inherits the "symmetrical layout"—a signature feature of the R35 full turbine kit—and is newly configured for the
GT5565_BB setup.
⮚ Minimal modifications to the vehicle are required, while supporting over 1000ps high-power setups.
⮚ Heat-resistant cast steel is used for both the exhaust manifold and turbo housing, ensuring excellent durability
even in high-temperature, high-vibration environments.
⮚ A gray single-layer POWER FLOW FILTER is included in this kit.

For the GT1000 and GT1000+, the setup was designed to be used together with the Racing Suction Kit
(70020-AN107). However, a dedicated Suction Kit for the Full Turbine Kit (Part No: 14021-AN001) is
now separately available.
Note: The Special Setup Kit does not include the D80mm–D70mm airflow adapter.
If you plan to use it in combination with the Racing Suction Kit (70020-AN107), please purchase
two airflow adapters separately:
Product Name: Pipe Suction
Part Number: G17811-N49080-00

【Kit Components】

●Component Parts

Turbine Purchase Separatelu(※GT5565_BB/ GT5565R_BB)
Exhaust Manifold Heat-resistant cast steel exhaust manifold outlet inner diameter: D47 mm
Wastegate GTII D50mm
Front Pipe SUS304 D70mm-D75mm
Suction Pipe Aluminum buffed finish D70mm suction pipe
Chamber Pipe Aluminum casting D60mm-70mm
Others Replacement Engine Mount (Right Side)

Note: Please use the SYMMETRY TURBINE GT5565_BB 3-BOLT A/R0.73 (Part No:
14001-AK077) together with this kit.
Universal-type turbos cannot be used due to differences in flange shape.

【Precautions】
⮚ This product is a kit that does not include the SYMMETRY TURBINE GT5565_BB unit or the
TURBINE SUCTION KIT. If needed, please purchase SYMMETRY TURBINE GT5565_BB (Part No:
14001-AK077), TURBINE SUCTION KIT (Part No: 14021-AN001), or the SPECIAL FULL TURBINE
KIT (Part No: 11003-AN020) separately.
⮚ Engine removal is required for installation.

⮚ The following components are not included in the kit: Fuel pump, Injectors, F-CON, EVC, Engine-
related parts

⮚ The factory-set boost pressure for the wastegate is approximately 90–100 kPa.
⮚ Modification of the OEM water pipe and the OEM turbocharger heat insulator is required.
⮚ This is a competition-use-only product. Therefore, we cannot guarantee against any damage to the
engine, transmission, or other components resulting from installation or use.
⮚ As this product is designed to be used without a catalytic converter, it does not comply with road
safety regulations and cannot be used on public roads.
⮚ Use of this kit may void any dealer warranty.
⮚ To achieve optimal performance from this kit, we recommend using the Power Flow Filter (Gray,
Single Layer) sold separately.
Note: This filter is designed specifically for race/trial use. It should not be used on public roads.
