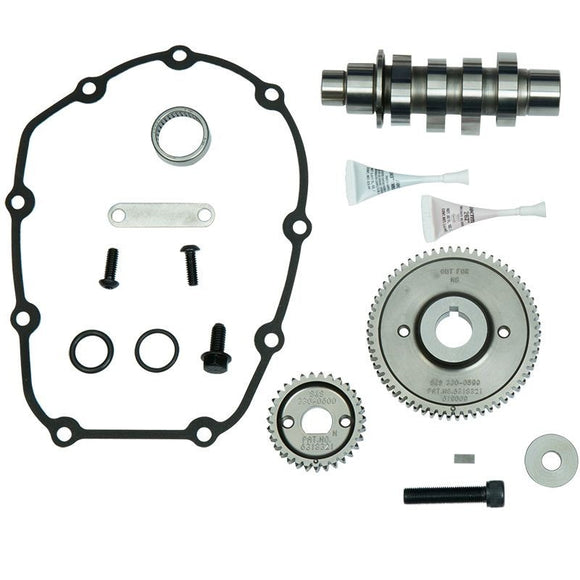

S&S Cycle 2017 M8 Touring 465G Gear Drive Camshaft Kit

330-0624

Features & Benefits

Bolt-in! Compatible with all stock valve train components
465G gear drive provide increased torque and horsepower
Eliminates cam drive chain and tensioner
Kits include all required bearings, o-rings, and hardware
Gear drive cams provide improved valve timing accuracy
Made in the USA
Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-up M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0718 Precision Tappet Set Without HL2T Kit For 1999-'17 HD Big Twins, 2000-'20 HD® Sportster® and 2017-up M8 Models (Tappets should be replaced every time that the cam is replaced)

Cylinder    Valve Timing    Valve Duration    Valve Lift    Lobe Center Line    Valve Lift @ TDC
Intake    Exhaust    Intake    Exhaust
Open BTDC/ Close ATDC    Open BBDC/ Close ATDC    Intake    Exhaust    Intake    Exhaust    Intake    Exhaust
Front    2.6/14.6    30.1/8.8    197.2    218.9    .462    .462    96.0    100.6    .087    .109
Rear    2.8/14.4    33.1/5.8    197.2    218.9    .462    .462    95.8    103.6    .088    .098
