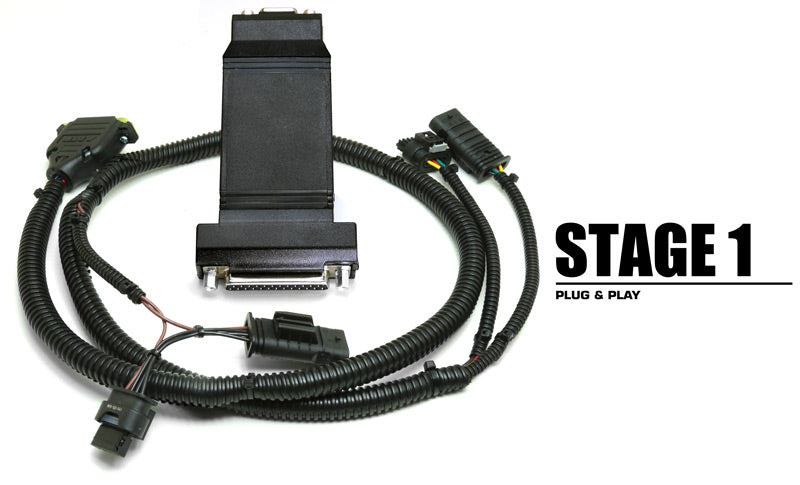

This plug and play tuner attaches to two easy to access sensors in the engine bay and works with your factory DME tuning to remap your boost, timing, and fueling for optimal performance and reduced turbo lag. It features a 64mhz processor allowing sensors to be sampled 800 times per second using dedicated 10 bit digital to analog converters, ensuring smooth and powerful performance. The same box automatically detects whether you have an N20, N55, or S55 motor based on the TMAP sensor voltage and adjusts the tuning accordingly.
Power gains on the N20 motor are up to 45 horsepower and 60 torque (35hp and 50tq at the wheels), on the N55 motor are up to 50 horsepower and 65 torque (40hp and 55tq to the wheels), and on the S55 motor up to 60 horsepower and 75 torque (50hp and 60tq to the wheels).
Installation is very discrete and it quickly removes without a trace when needed. Fuel economy during normal driving is unchanged. Compatible with all driving modes.
Part F30-N55-STG1 is CARB Approved Under Executive Order (EO) No. D-744-1 for 2013 BMW 335i models only. All other applications are competition race use only and not legal for use within California.
Click Here for the BMW TMAP Sensor Location
N55 STAGE 1 APPLICATIONS
BMW 1 Series
• 2011+ E87 135
• 2011+ E82 135
• 2012+ N55 F20 F21 M135
BMW 2 Series
• 2014+ N55 F22 F23 M235
BMW 3 Series
• 2011+ N55 E90 E91 E92 E93 335
• 2012+ N55 F30 F31 335
• 2013+ N55 F34 335 GT
BMW 4 Series
• 2014+ N55 F32 F33 F36 Coupe 435
BMW 5 Series
• 2010-2013 N55 F07 535 GT
• 2011-2016 N55 F10 F11 535
BMW 6 Series
• 2011+ N55 F13 640 Coupe
• 2011+ N55 F12 640 Convertible
• 2012+ N55 F06 640 Gran Coupe
BMW 7 Series
• 2012-2015 N55 BMW F01/F02 740i/ix
BMW X Series
• 2013-2015 N55 X1
• 2011-2017 N55 X3 X5 X6
• 2017+ N55 X4 M40
N20/N26 STAGE 1 APPLICATIONS
BMW 2 Series:
• 2014+ N20/N26 F22 F23 220/228
BMW 3 Series:
• 2012+ N20/N26 F30 320/328
BMW 4 Series:
• 2014+ N20/N26 F32 F33 F36 420/428
BMW 5 Series:
• 2011-2016 N20/N26 F10 / F11 520/528
BMW X Series
• 2013+ X1 E84 N20
• 2013+ X3 F25 N20
BMW Z Series
• 2013-2016 Z4 N20
S55 STAGE 1 APPLICATIONS
BMW M2
• 2018+ F87 M2 Competition (S55 Engine)
BMW M3
• 2015+ F80 M3
BMW M4
• 2015+ F82 M4
DYNO RESULTS
N55 Stage 1 Dyno Results
2014 M235 Comparing Dinan DTRONICS Stage 1 and BMS Stage 1
N20 Stage 1 Dyno Results
N20 Stage 1 VBOX Tests
M3/M4 S55 Stage1 Dyno Results
