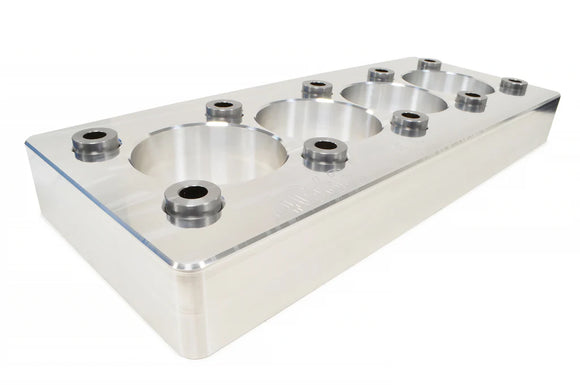

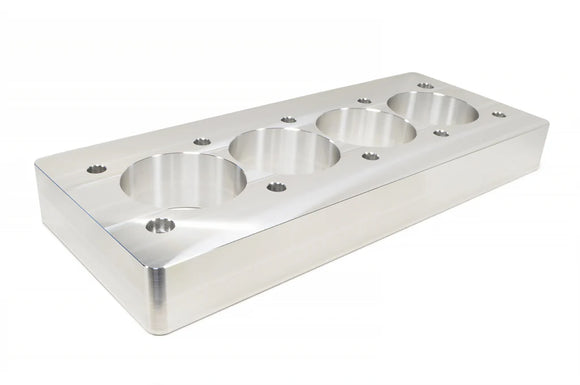

STM Engine Torque Plate for 4G63/4G64 (4G-TQP)

STM-4G-TQP

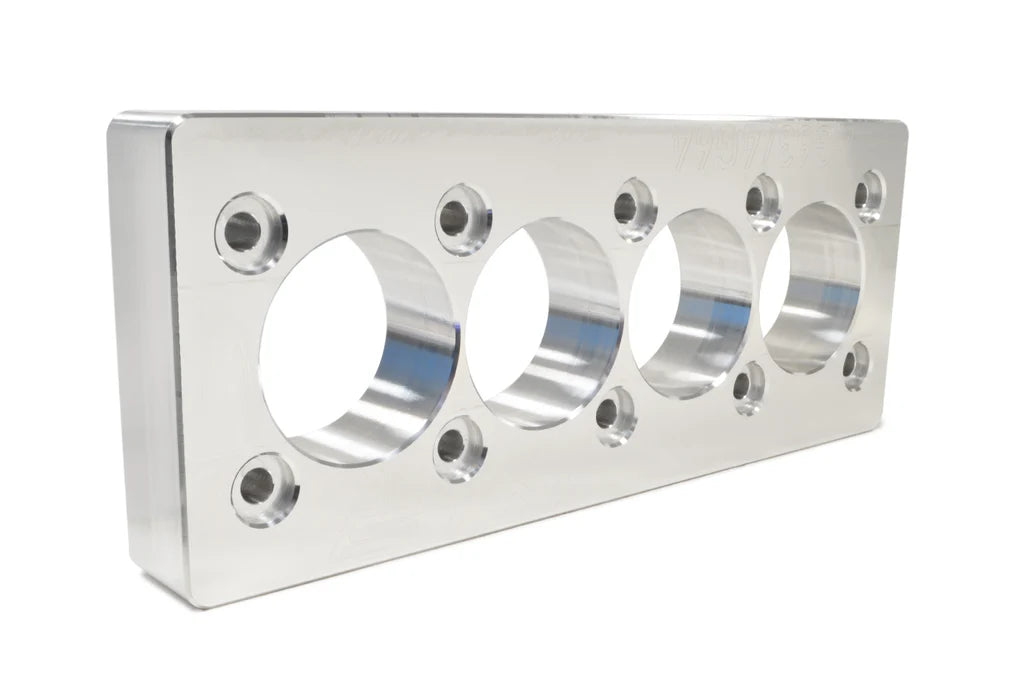

The STM 4G63/4G64 engine torque plate is made in-house at STM from 6061 billet aluminum and includes a set of 4130 chrome-moly inserts to protect your plate during torque down. Can be used with 4G63/4G64 up to 88mm bore.

A torque plate should be used when you have your engine block bored out. Anytime you bore a block, distortion will occur to the cylinders unless you use a torque honing plate installed as a brace to replicate the pressure and tension of the head when bolted down.

The plate should be torqued onto the block in the same pattern and with the same fasteners and torque specs you plan to use when you do the final engine assembly.

Vehicle Fitment:
4G63/4G64 (88mm max bore)
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR-4

Torque Plate Specs:
• 4G63/4G64 Engines
• 6061 Billet Aluminum
• 88mm Bore
• 49.25mm Thick
• USA-Made in-house at STM
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

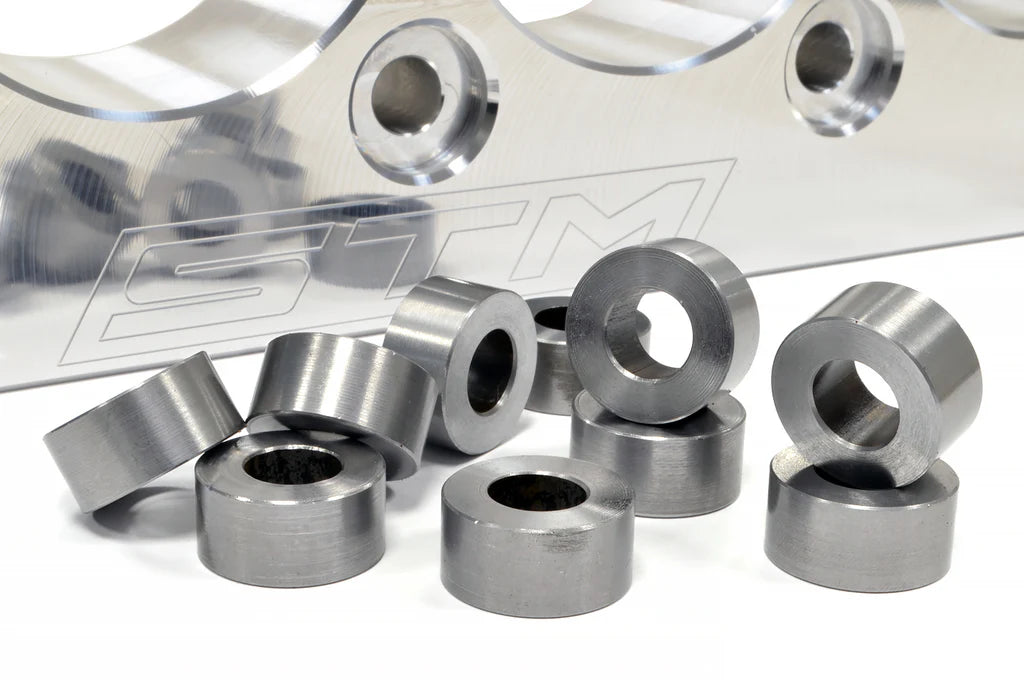

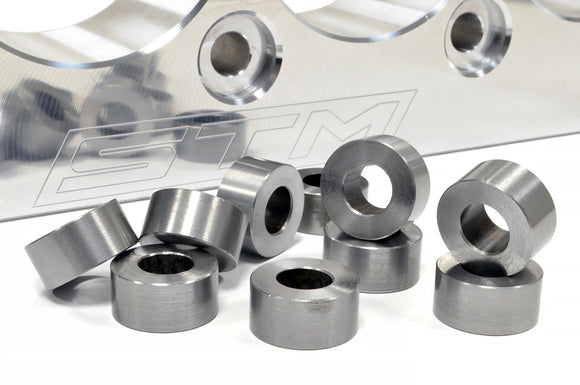

Spacer Specs:
• 4130 Chrome-Moly
• 12.15mm Tall

Total Weight with Spacers:
• 15.02 pounds

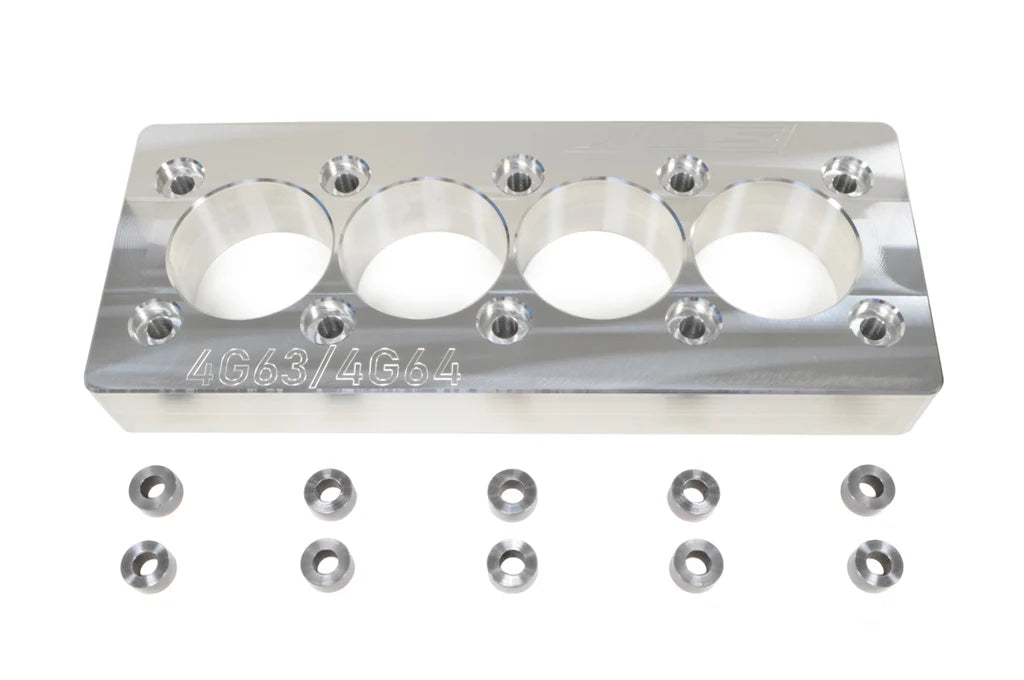

Purchase Includes:
(1) 4G63/4G64 Torque Plate
(10) 12mm Inserts
