SYMMETRY TURBINE GT5565_BB 3BOLT A/R0.73

14001-AK077

The successor to the GT1000 and
GT1000+ SYMMETRY is
introduced as the GT5565_BB

■The compressor housing, originally designed
exclusively for the R35, has been redesigned for the
GT5565_BB. It features a ported shroud that fits
within an extremely tight space.

The turbo housing is made of heat-
resistant cast steel to ensure durability.

【Features】
 We have introduced a kit for the GT5565_BB that inherits the “Symmetry Layout” feature, a hallmark of the R35
full turbine kit. This product is the turbo unit sold separately (left and right set).
 For vehicles equipped with the GT1000 or GT1000+, turbo replacement is possible by using this product together
with the conversion kit (Part No. 14999-AN004).
(Note: Water and oil piping must be replaced simultaneously.)
 Compared to the GT1000 and GT1000+, a ported shroud has been added. By cleverly designing its structure to
use a common suction pipe layout, surge during spool-up is avoided, improving controllability during circuit driving.
 The turbo housing uses heat-resistant cast steel, ensuring high durability against heat and vibration.
SYMMETRY TURBINE GT5565
【GT5565_BB/GT5565R_BB】

The successor to the GT1000 and
GT1000+ SYMMETRY is
introduced as the GT5565_BB

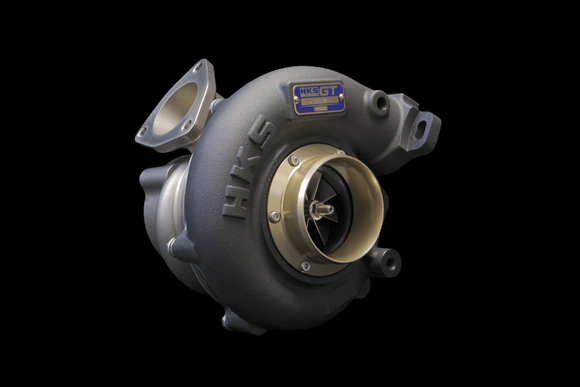

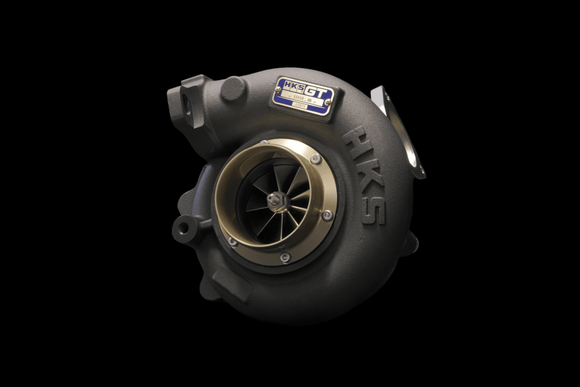

【Product Photos】

【Kit Components】

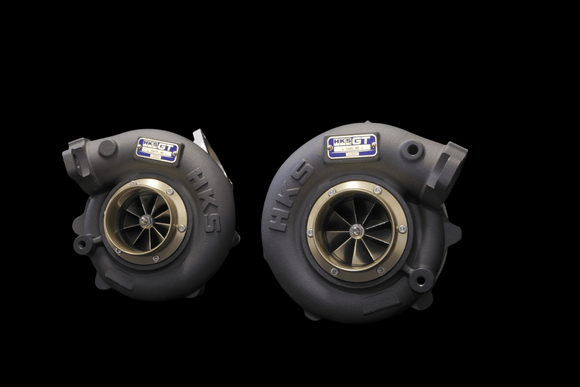

●Component Parts

Turbine GT5565_BB(for right bank)
GT5565R_BB(for left bank)

■ The turbo housing is made of heat-
resistant cast steel to ensure durability.

■The compressor housing, originally designed
exclusively for the R35, has been redesigned for the
GT5565_BB. It features a ported shroud that fits
within an extremely tight space.

Compressor Side Turbo side
Wheel Housing Wheel Housing

MODEL Trim
Inlet
Diameter
(mm)
Outer
Diameter
(mm)
Inlet
Diameter
(mm)
Outlet
Diameter
(mm)
A/R Trim
Outer
Diameter
(mm)
Outlet
Diameter(
mm)
Inlet
Flange
Outlet
Flange A/R

GT5565_BB
GT5565R_BB 65 58 71 70 GT1000

flange 0.74 84 60 55 3 Bolt 3 Bolt 0.73
