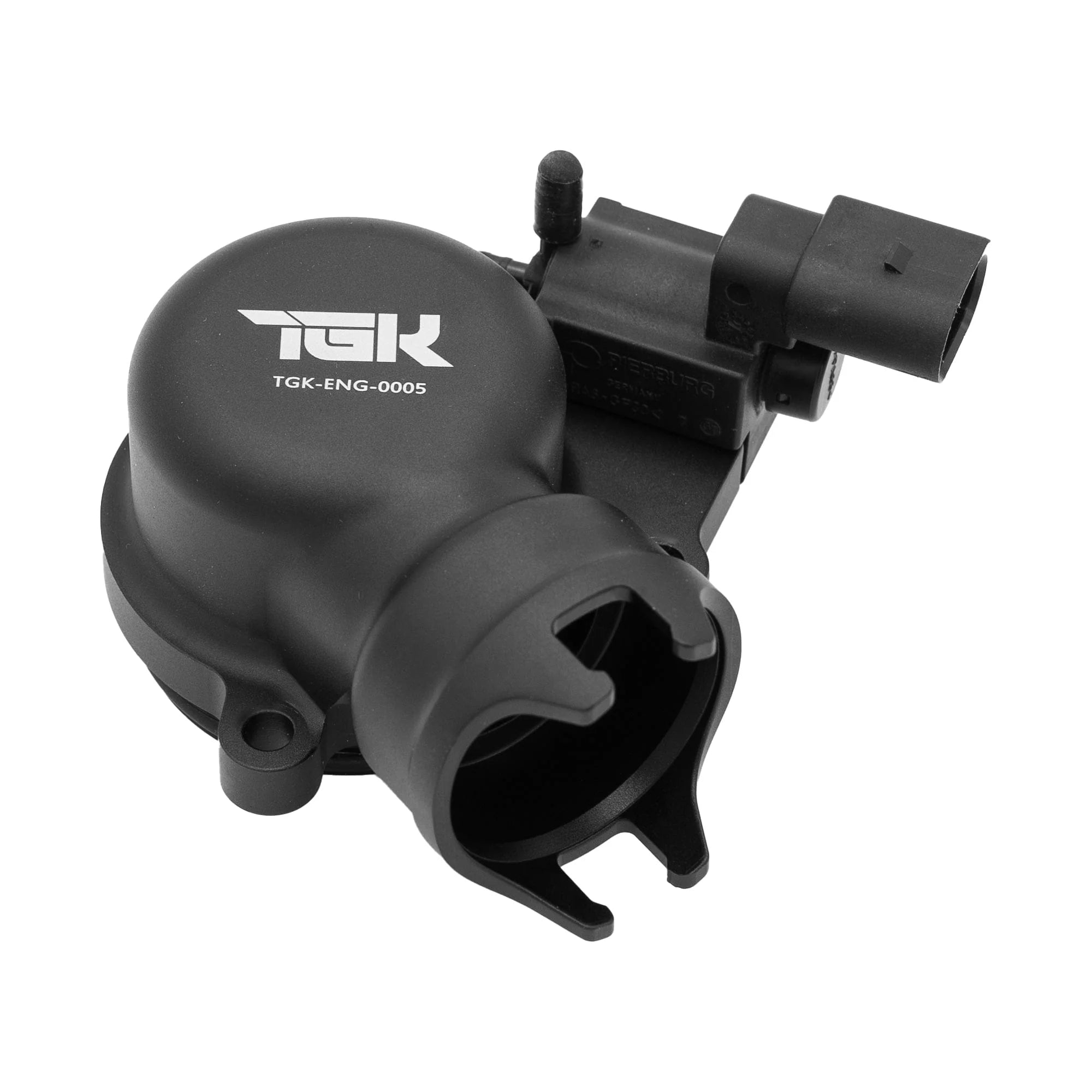

TGK Motorsport Coolant Shutoff Switch Delete - Audi 4.0T | TGK-ENG-04

TGK-ENG-04

Upgrade your failure-prone OEM coolant shutoff valve with the TGK Motorsport Audi 4.0T Coolant Shutoff Valve Delete Kit, engineered to ensure consistent coolant flow and eliminate the risk of overheating due to stuck valves.

The factory coolant shutoff valve on the Audi 4.0T engine is a vacuum-actuated device located within the cooling circuit. Its function is to block coolant flow during cold starts, allowing the engine to reach operating temperature more quickly. While this design may slightly improve warm-up time, it introduces a critical failure point — the valve is known to fail in the closed position, preventing coolant from circulating through the engine. This restriction can cause severe overheating and potentially catastrophic engine damage.

The TGK Motorsport Delete Kit removes this failure-prone component entirely, restoring unimpeded coolant flow throughout the system. By eliminating the shutoff valve, this kit simplifies the cooling circuit and improves long-term reliability — especially in performance or hot-climate driving conditions where consistent coolant flow is essential.

How Does the Factory Coolant Shutoff System Operate?
Under normal conditions, the shutoff valve remains closed during cold starts, blocking coolant from circulating through the engine to allow faster warm-up. Once the engine reaches temperature and vacuum is blocked off, the valve opens to allow coolant to flow. However, with age or vacuum system degradation, the valve can stick closed permanently, preventing coolant circulation even under load — which can lead to overheating, head gasket failure, or worse.

The TGK Motorsport Delete Kit bypasses this system entirely, ensuring coolant can flow from startup to redline without restriction. It is a simple, effective, and permanent solution for one of the most overlooked failure points in the Audi 4.0T platform.

Whether you’re daily driving or pushing your 4.0T on track, the TGK Motorsport Coolant Shutoff Valve Delete Kit delivers peace of mind and improved thermal management.
