Timing Chain Kit - VW/Audi 2.0T TSI

Timing Chain Kit - VW/Audi 2.0T TSI

$539.99 CAD $1,032.12 CAD Save $492.13 CAD

Shipping calculated at checkout

Assembled by UROTuning SKU: 06K109158BJ-KT-CABA-STD

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

06K109158BJ-KT-CABA-STD

Volkswagen does not have a regular service interval for timing chains. That being said there have been problems even with the EA888 Gen3 engine timing chain system as early as 50,000 miles. You may notice your engine making the dreaded "marbles in a can sound". If you are hearing this sound it's time to order this kit. Over time the chains, tensioners, and guide rails get worn out and the chain becomes too loose. Thus giving it the potential to skip a tooth putting your engine out of timing or worst case scenario the chain breaking and potentially causing catastrophic engine failure.


For engine codes:

CABA / CABB / CABD / CAWA / CAWB / CBFA / CCTA / CCTB / CCZA / CCZB / CCZC / CDAA / CDAB / CDHA / CDHB / CFPA / CGYA / CJEB / CPSA / CPRA

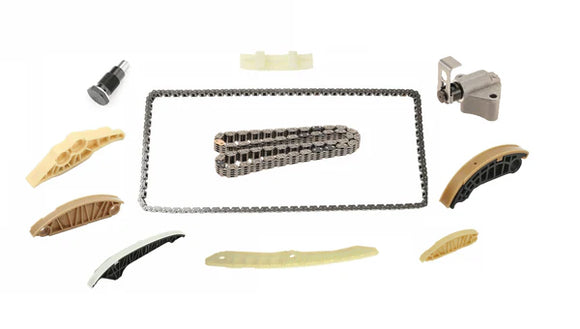

Kit Includes:

  • (1) 06K109158BS-INA - Balance Shaft Chain - VW/Audi (many models check fitment) (INA)
  • (1) 06K109158BJ-FEB - Timing Chain Upper - VW/Audi / 1.8T Gen3 / 2.0T / TSI / Gen3 / Evo4 (Febi)
  • (1) 06H109467AE - Timing Chain Tensioner - Lower | 2.0T TSI (VW/Audi)
  • (1) 06K109467Q - Timing Chain Tensioner - VW/Audi 1.8T Gen3 / 2.0T Gen3 (VW/Audi)
  • (1) 06H109469AQ-INA - Timing Chain Guide Rail (Lower) - VW/Audi / 1.8T TSI / 2.0T TSI
  • (1) 06H109469AN - Genuine Timing Chain Guides - VW/Audi 2.0T FSI & TSI (VW/Audi)
  • (1) 06H109469T-FEB - Timing Chain Guide Rail Upper - Audi 1.8T / 2.0T (Febi)
  • (1) 06H109469AH-INA - Timing Chain Guide Rail (Lower) - VW/Audi / 1.8T TSI / 2.0T TSI
  • (1) 06H109469AP - Timing Chain Guide Rail (Upper) - VW/Audi / 1.8TSI / 2.0T TSI (VW/Audi)
  • (1) 06H109509P-INA - Timing Chain Guide Rail (Lower) - VW/Audi / 1.8T TSI / 2.0T TSI
  • (1) 06H109509Q-INA - Timing Chain Guide Rail (Upper) - VW/Audi / 1.8T TSI / 2.0T TSI



OE Part #'s


Engine Balance Shaft Chain

06K-109-158-BS / 06K109158 BS / 06K 109 158 BS / 06K109158BS

06H-109-158-H / 06H109158 H / 06H 109 158 H / 06H109158H

06K-109-158-A / 06K109158 A / 06K 109 158 A / 06K109158A

Engine Timing Chain

06K-109-158-BP / 06K109158 BP / 06K 109 158 BP / 06K109158BP

06K-109-158-BE / 06K109158 BE / 06K 109 158 BE / 06K109158BE

Engine Balance Shaft Chain Tensioner

06H-109-467-AE / 06H109467 AE / 06H 109 467 AE / 06H109467AE

06H-109-467-L / 06H109467 L / 06H 109 467 L / 06H109467L

Engine Timing Chain Tensioner

06K-109-467-K / 06K109467 K / 06K 109 467 K / 06K109467K

06H-109-467-AB / 06H109467 AB / 06H 109 467 AB / 06H109467AB

06H-109-467-N / 06H109467 N / 06H 109 467 N / 06H109467N

06H-109-467-T / 06H109467 T / 06H 109 467 T / 06H109467T

Engine Balance Shaft Chain Guide

06H-109-469-AQ / 06H109469 AQ / 06H 109 469 AQ / 06H109469AQ

06H-109-469-N / 06H109469 N / 06H 109 469 N / 06H109469N

Engine Balance Shaft Chain Guide

06H-109-469-AN / 06H109469 AN / 06H 109 469 AN / 06H109469AN

Engine Timing Chain Guide (Upper)

06H-109-469-T / 06H109469 T / 06H 109 469 T / 06H109469T

Engine Balance Shaft Chain Guide

06H-109-469-AH / 06H109469 AH / 06H 109 469 AH / 06H109469AH

Engine Timing Chain Guide

06H-109-469-AP / 06H109469 AP / 06H 109 469 AP / 06H109469AP

06H-109-469-AJ / 06H109469 AJ / 06H 109 469 AJ / 06H109469AJ

Engine Balance Shaft Chain Tensioner

06H-109-509-P / 06H109509 P / 06H 109 509 P / 06H109509P

Engine Timing Chain Tensioner

06H-109-509-Q / 06H109509 Q / 06H 109 509 Q / 06H109509Q

06H-109-509-AA / 06H109509 AA / 06H 109 509 AA / 06H109509AA




This part fits the following vehicles

Important fitment note! Be sure your engine code is listed in the description before ordering
Make Model Submodel Engine Drive
Audi 8U Q3 (2015-2018) 2.0T FWD
Audi 8U Q3 (2015-2018) 2.0T Quattro
Audi A3 8P (2005-2013) 2.0T TSI (2008.5+) FWD
Audi A3 8P (2005-2013) 2.0T TSI (2008.5+) Quattro
VW Beetle (2012-2019) 2.0T
VW CC (2009-2017) 2.0T
VW EOS (2007-2015) 2.0T
VW Golf/GTI Mk5 (2006-2009) GTI 2.0T TSI (2008.5+)
VW Golf/GTI Mk6 (2010-2014) GTI 2.0T
VW Mk5 (2006-2010) Jetta 2.0T TSI (2008.5+)
VW Mk5 (2006-2010) GLI 2.0T TSI (2008.5+)
VW Mk6 (2011-2014) GLI 2.0T GLI (2012-2013)
VW Passat B6 (2006-2010) 2.0T
VW Tiguan 1 (2009-2011) 2.0T 4Motion
VW Tiguan 1 (2009-2011) 2.0T FWD
VW Tiguan 2 (2012-2017) 2.0T 4Motion
VW Tiguan 2 (2012-2017) 2.0T FWD
