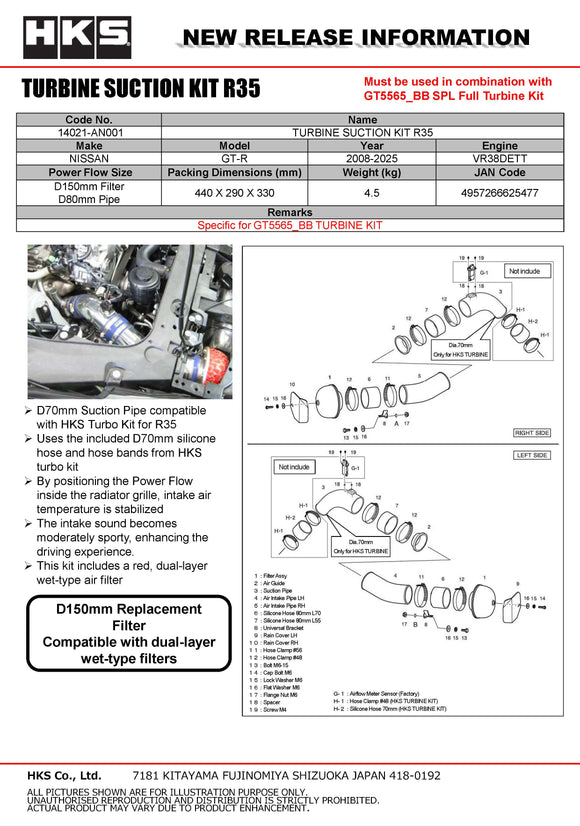

TURBINE SUCTION KIT R35

14021-AN001

Must be used in combination with GT5565_BB TURBINE KIT

D70mm Suction Pipe compatible
with HKS Turbo Kit for R35
 Uses the included D70mm silicone
hose and hose bands from HKS
turbo kit
 By positioning the Power Flow
inside the radiator grille, intake air
temperature is stabilized
 The intake sound becomes
moderately sporty, enhancing the
driving experience.
 This kit includes a red, dual-layer
wet-type air filter

D150mm Replacement

Filter

Compatible with dual-layer
wet-type filters

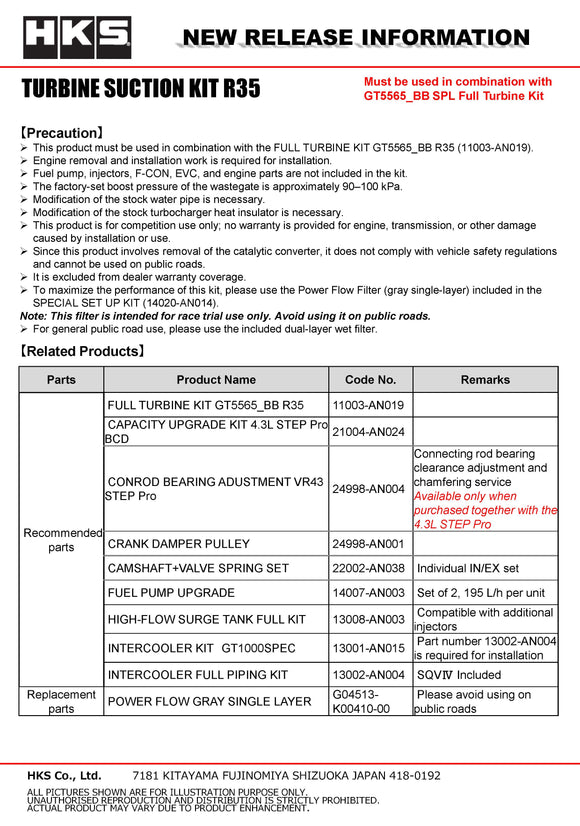

【Precaution】
 This product must be used in combination with the FULL TURBINE KIT GT5565_BB R35 (11003-AN019).
 Engine removal and installation work is required for installation.
 Fuel pump, injectors, F-CON, EVC, and engine parts are not included in the kit.
 The factory-set boost pressure of the wastegate is approximately 90–100 kPa.
 Modification of the stock water pipe is necessary.
 Modification of the stock turbocharger heat insulator is necessary.
 This product is for competition use only; no warranty is provided for engine, transmission, or other damage
caused by installation or use.
 Since this product involves removal of the catalytic converter, it does not comply with vehicle safety regulations
and cannot be used on public roads.
 It is excluded from dealer warranty coverage.
 To maximize the performance of this kit, please use the Power Flow Filter (gray single-layer) included in the
SPECIAL SET UP KIT (14020-AN014).
Note: This filter is intended for race trial use only. Avoid using it on public roads.
 For general public road use, please use the included dual-layer wet filter.
