Turbo Install Kit - VW / Evo4 2.0T / Mk8 / GTI / Golf R | TIK-EVO4-KT

Turbo Install Kit - VW / Evo4 2.0T / Mk8 / GTI / Golf R | TIK-EVO4-KT

$57.39 CAD $62.50 CAD Save $5.11 CAD

Shipping calculated at checkout

Genuine VW Audi SKU: TIK-EVO4-KT

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

TIK-EVO4-KT

This Kit includes all the gaskets , o-rings, and hardware you need to professionally service the turbocharger on your Mk8 GTI or Golf R using all Genuine VW Parts.

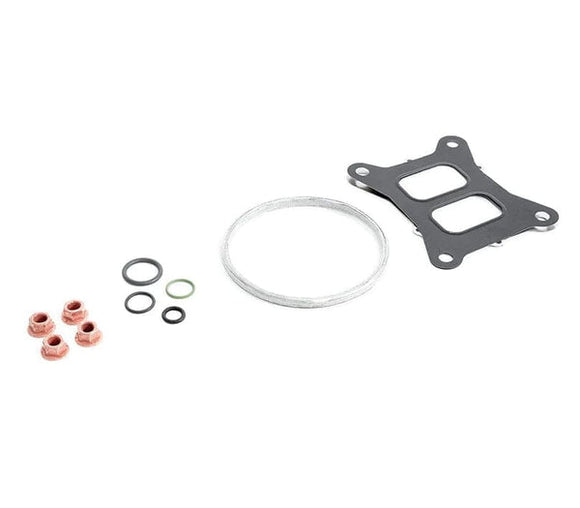

Kit Includes:

- (4) Turbo Flange Self-Locking M8 Hex Nut
- (2) Oil Feed Line O-Rings
- (1) Oil Return Sealing O-Ring - 16.75x1.65mm
- (1) Oil Return Sealing O-Ring - 15x1.8mm
- (1) Turbo to Downpipe Gasket
- (1) Turbo Exhaust Manifold Gasket



Part #'s


Turbo Flange Self-Locking M8 Hex Nut

WHT-007-210 / WHT 007 210 / WHT007210


Oil Feed Line O-Rings

WHT-006-123 / WHT 006 123 / WHT006123


Oil Return Sealing O-Ring - 16.75x1.65mm

WHT-006-112 / WHT 006 112 / WHT006112


Oil Return Sealing O-Ring - 15x1.8mm

WHT-006-113 / WHT 006 113 / WHT006113


Turbo to Downpipe Gasket

5Q0-253-115-C / 5Q0253115 C / 5Q0 253 115 C / 5Q0253115C


Turbo Exhaust Manifold Gasket

06L-253-039-A / 06L253039 A / 06L 253 039 A

06L-253-039 / 06L 253 039 / 06L253039

This Part Fits The Following Vehicles

MAKE MODEL SUBMODEL ENGINE DRIVE
VW Mk8 (2022+) GTI 2.0T Evo4
VW Mk8 Golf R (2022+) 2.0T Evo4
