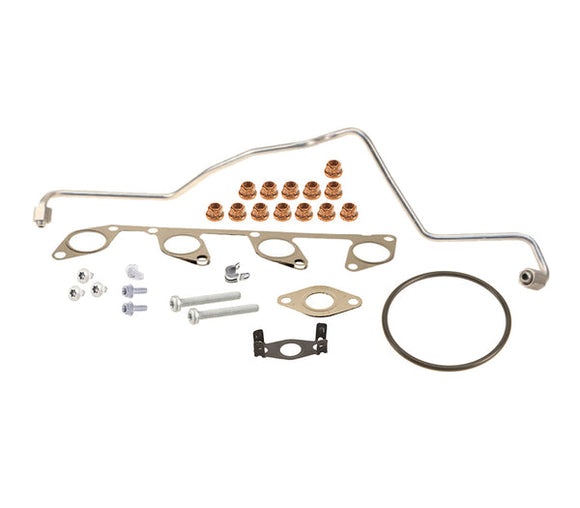

Turbocharger Install Kit - VW/Audi / CJAA TDI / 8P A3 / Mk6 Golf & Jetta / Beetle

This Kit provides you with every part you need to professionally service or replace your turbocharger.


Kit Includes:

- Turbo Oil Supply Line (Genuine)
- Exhaust Manifold Gasket (Victor Reinz)
- Clamping Bracket (Genuine)
- Hex Bolt M6x12 (Genuine)
- (2) Hex/Torx Bolt M6x16 (Genuine)
- (13) Self Locking Nut M8 (Genuine)
- (2) Turbo Mounting Bolt M6x45 (Genuine)
- EGR Gasket (Elring)
- (3) Torx Bolt M6x8 (Genuine)
- Turbocharger Gasket (Genuine)
- Turbo Oil Return Line Gasket (Genuine)



Part #'s


Turbo Oil Supply Line

03L-145-771 / 03L 145 771 / 03L145771


Exhaust Manifold Gasket

03L-253-039-B / 03L253039 B / 03L 253 039 B / 03L253039B


Clamping Bracket

N02-060-96 / N02 060 96 / N0206096


Hex Bolt M6x12

N10-156-307 / N10 156 307 / N10156307


Hex/Torx Bolt M6x16

N90-592-705 / N90 592 705 / N90592705


Self Locking Nut M8

N90-894-601 / N90 894 601 / N90894601


Turbo Mounting Bolt M6x45

N91-117-502 / N91 117 502 / N91117502


EGR Gasket

381-315-47A / 381 315 47A / 38131547A

038-131-547-A / 038131547 A / 038 131 547 A / 038131547A

028-131-547-C / 028131547 C / 028 131 547 C / 028131547C

03L-131-547-D / 03L131547 D / 03L 131 547 D / 03L131547D


Torx Bolt M6x8

N10-680-303 / N10 680 303 / N10680303


Turbocharger Gasket

03L-145-117-C / 03L145117 C / 03L 145 117 C / 03L145117C


Turbo Oil Return Line Gasket

03G-145-757-A / 03G145757 A / 03G 145 757 A

03L-145-757-Q / 03L145757 Q / 03L 145 757 Q / 03L145757Q

03L-145-757-M / 03L145757 M / 03L 145 757 M / 03L145757M
