Vektor Technik Digital Data Display Gauge For VW MK7 GTI & Golf R - Switch (For vehicles with Navigation)
More than a display.
We change the interaction with your vehicle! The way of tuning. A novel display system that gives you many new options without being complicated.
Experience unprecedented simplicity for customization.
The range of functions.
Our display can show more than just numbers. It offers you a 4 in 1 solution without being cumbersome.
Unlock the hidden potential of new functions, child's play.
We also plan many new functions for which you will receive updates at any time.
One display for all models.
Our data display fits all Golf 7 models.
From the 1.0 TSI to the R, from the 1.6 TDI to the GTD. All body styles, pre-facelift, and facelift.
Your digital tuning assistant.

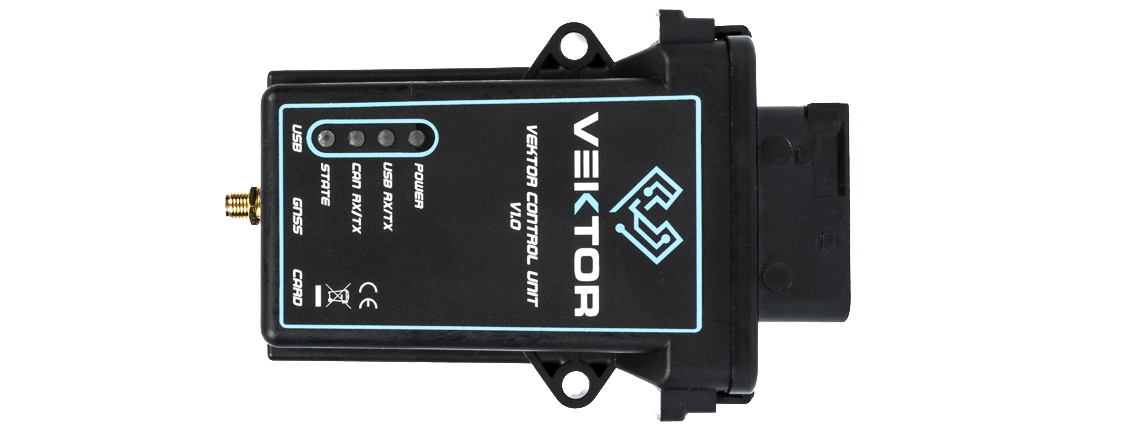

The VCU - Vector Control Unit - controls all functions of the data display. We offer a variety of internal sensors and interfaces and thus have optimal control over all vehicle-related data.
Here you will find all the important facts and figures about your engine. On several pages, you can find out the current boost pressure, engine speed, temperatures, and more.
Or you can simply configure your own custom dashboard.

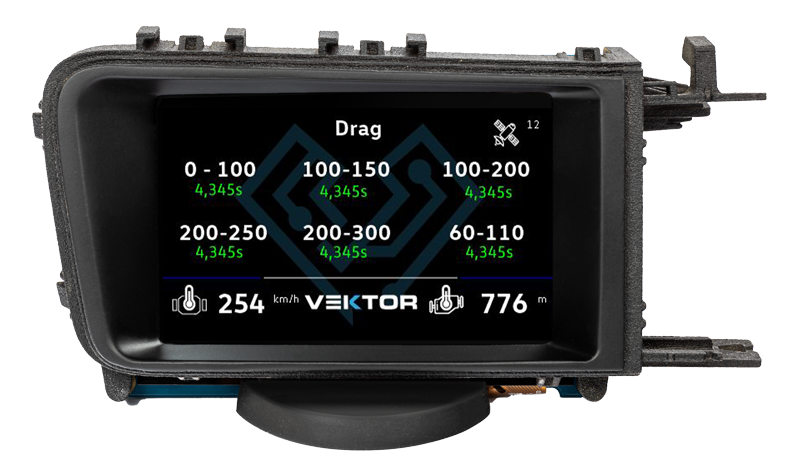

Measure your car's acceleration like never before.
With the integrated 30 Hz GNSS chip and a dead reckoning sensor fusion, you can experience the acceleration of your car with extreme precision.
Coding US parking lights, seat belt warning, start/stop deactivation, or pointer deflection without complicated software? Here you can do it with just a push of a button in a few seconds.
Read and delete the error memory in every control unit, conveniently, quickly, and easily - without a computer or other hardware.
Resetting the service intervals for oil, brakes, and maintenance as well as deleting the adaptations of the engine and transmission. We have also integrated the service mode for the electronic parking brake.
Using the data logger, you can create log files in no time. Send this for a direct diagnosis to your tuner via email or Whatsapp, for example, or view the result directly in the vector app.
The new vector data display sets standards on several levels!
- 2 dashboards + custom dash
- 2 mass dashboards + max. Values
- Service functions
- Read / delete fault memory
- Data logger
Performance Accelerometer (30 Hz + DR)
Note: In order to achieve the best satellite reception for accelerometer measurement, we have developed the so-called GNSS switch. This enables us to use the vehicle antenna. There are no disadvantages with navigation, no active operation by the driver is required. For vehicles without an antenna on the roof, we also supply a very high quality, active GNSS antenna. This can be stowed in the dashboard.
In order to deliver your order correctly, we need to know the following from you. Does your vehicle have a standard navigation system with a shark antenna on the roof? Then please select the switch option. If your vehicle is equipped with a radio, without navigation and antenna on the roof, then please select the Antenna option.

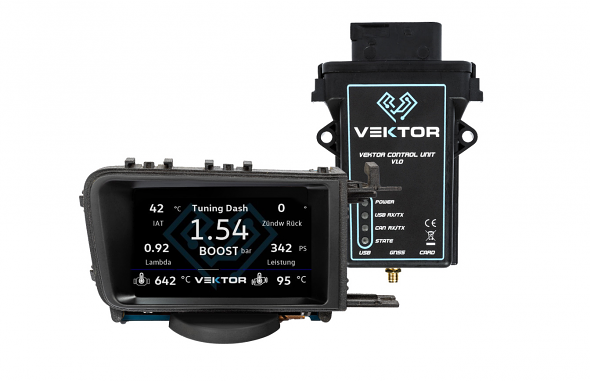

Included in the Kit:
- VCU control unit
- Golf 7 data display with frame
- Vehicle specific wiring harness
- Control unit holder
- Installed Mico-SD card
- Mini USB cable
- Illustrated installation and operating instructions

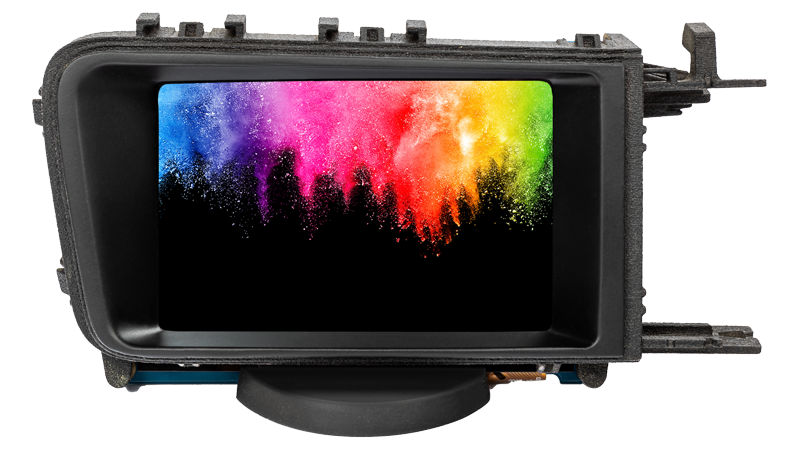

Great colors and intuitive operation
The vector data display can be operated either by touch or the steering wheel buttons.
We use a capacitive 4.3 ″ multi-touch display to make operation as easy and pleasant as with your smartphone.
On request, you can get haptic feedback directly from the display with every touch.
GNSS performance meter - We use a 30Hz GNSS multiband (GPS, GLONASS, GALILEO) sensor for exact acceleration measurement. With dead reckoning and sensor fusion from the gyroscope and acceleration sensors, we can carry out a very precise location determination.
20 channel dashboard - Thanks to high-speed CAN integration, we are able to read a large number of sensors from your car at the same time and display their values in real-time.
Easy installation - Installation is child's play. No cutting, soldering, repinning. The supplied wiring harness is simply plugged between the CAN gateway and the car. That’s it.
- You can remove and reinstall the cover with the supplied tool without damage.
- Can be updated - You can update both the vector control unit and the data display via our app for iOS and Android and via the PC software and thus get new functions.
*** Please note this product page is for vehicles WITH Navigation system. For vehicles without, please see below:
VDX-002 - Vektor Technik Digital Data Display Gauge For VW MK7 GTI & Golf R (Antenna)
