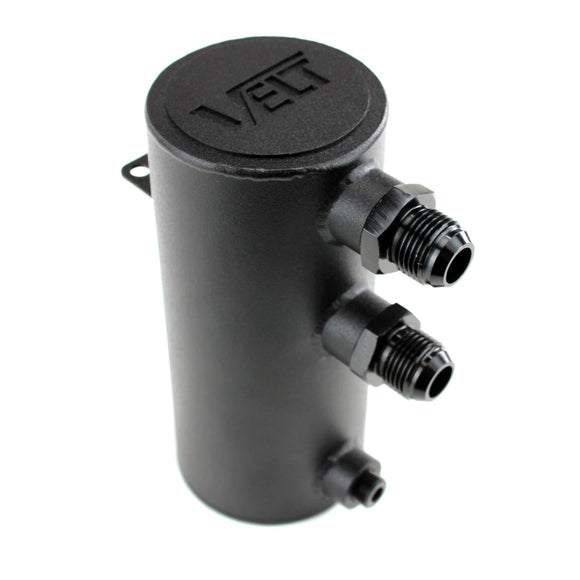

Velt Sport Universal Catch Can In Satin Black Finish

VELT-CC-BLK-AN

The Velt Sport catch can! Designed to be a universal fit for virtually any engine bay. With the modular add-ons that Velt Sport offers, you can build your own kit to fit your vehicle’s needs!

Construction:

• Can fabricated from 304 stainless tubing and laser cut components
• Bottom drain fitting 304 stainless steel with NPT threads
• Precision TIG welding on all stainless-steel components
• Internal stainless steel filtration media

Fitment:

• Universal Installation
• Horizontal and vertical mounting brackets welded on
• Aluminum Inlet & outlet fittings in your choice of 3/4" barb or -10AN
• Designed for recirculation into intake system
• Sump capacity 1/2 quart (16oz)
• Overflow capacity 3/4 quart (24oz)

Finishes & Accessories:

• Satin black powder coating
• Mounting brackets available for Mk4 and Mk5/Mk6 applications

Specifications:

• Diameter = 3.00"
• Height = 6.75"
• Hose fitting threads = M18


Should you use barb fittings or A/N fittings for your application? If you're having trouble deciding, you're not the only one! Here are a few things to consider when trying to decide which type of fittings are most appropriate for your application.

Barb Fitting:
Provides you with flexibility during installation. Also allows for tighter clearances as they take up less space than devoting additional length to the hardware of the tubing. Allows for a more easily customizable tubing length as you can trim to fit your needs. The tubing to connect everything together is usually a lower cost.

Army Navy Fitting (A/N): A standard in automotive aftermarket aesthetic. Provides a finished look while making service time a breeze to connect & disconnect. The tubing is sometimes at an additional cost if you are not cutting and assembling them yourself. Better suited if you find yourself emptying the catch can more often.

Brackets: UroTuning has bespoke bracketry for certain chassis to help make the installation seamless and look professional. While also providing a solid mounting position! You can select the following as an add-on after selecting your fitting type:

• Velt Sport Catch Can Mount - VW / Mk4 / Golf / GTI / Jetta

Have a 2.0T FSI in your Mk5 GTI/GLI, 8P A3, Mk6 R, B6 Passat? We have a kit for it!
