VF Engineering Supercharger Kit - Audi R8 | V10 ('09-'15)

VFK87-01

functional performance

Experience the thrill of enhanced power as you carve through canyons with precision or accelerate down the straightaways of your favorite track. The VF750 not only improves performance but also embodies VF Engineering's commitment to both form and function. With their legacy of innovation and quality, VF Engineering has developed the VF750 to meet the highest standards, ensuring a powerful and exhilarating driving experience. Unlock the true potential of your Audi R8 V10 with the VF Engineering VF750 Supercharger System and enjoy the ultimate blend of performance and reliability on every journey.

parts list

VF750 Supercharger System - 2009 - 2015 Audi R8 V10

• Magnuson TVS2300 Roots Style Supercharger
• 6061 Aluminum intake manifold
• Internal bypass system
• High flow cast superchager inlet
• Air water charge cooler system
• Polypropylene water reservoir
• High density water radiator
• High flow water pump
• Hard anodized 6061-T6 aluminum brackets
• OEM serpentine belt and tensioner FEAD
• Upgraded vacuum system
• Hex Flash ECU tuning programming cable

VF750 R8 V10

One of the highest power output modifications to emanate from the VF-Engineering R&D facility in California is a bolt on roots supercharger system adding approx 200hp and 200lbs of torque to the V10 R8. Available for the 2009 and up models with either manual and Rtronic/Stronic, this system utilizes the latest generation Eaton TVS2300 4-lobe roots twin vortices supercharger coupled with an air to water after cooling system.

Using state of the art technology and production processes, VF-Engineering have created a system that integrates with the V10 engine effectively and produces a proven result which has been adopted and is installed in the primary and aftermarket.

Packing a lag-free instant punch of torque from 5psi of boost at 1500rpm, the air charge progressively climbs to 6.5psi at redline resulting in exhilarating increase in acceleration. The supercharger creates a predictable delivery of power output likening the car to a V12. This suits all driving styles and conditions and not just straight line acceleration.

Designed as a reversible and simple upgrade this product is targeted at the daily driver and enthusiast looking to retain the character of the V10 Audi.

Engine calibration is programmed with an ECU OBD2 port electronic flash/Direct flash and was designed by VF/Hex Tuning maintaining the Bosch safety functions and using the factory engine controls to re-calibrate for an enhanced combustion cycle. Extensive tuning of the camshaft timing mapping, allows appropriate charging of the combustion cylinders to produce an extra 120 ft/lbs of torque at 2000rpm.

Tested by Motor Trend magazine, the supercharged V10 achieves 0-60 in 3.1s (originally 3.9s) and hits the quarter mile flag in just 11.0 sec @ 127.3 mph.

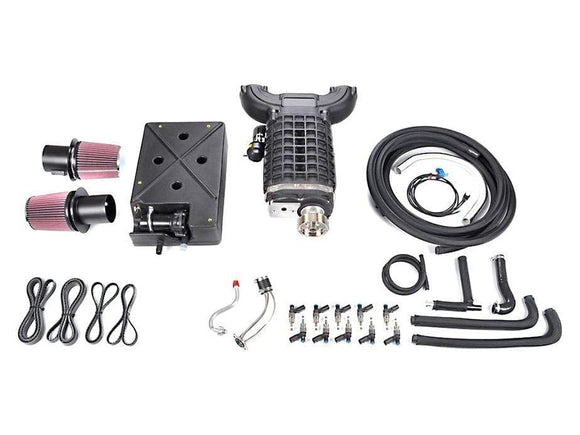

Parts List

• Eaton TVS2300 roots supercharger
• 6061 Aluminum intake manifold
• Internal bypass system
• High flow dual throttle body inlet
• Air water charge cooler system
• Polypropylene water reservoir
• OEM high density water radiator
• Bosch water pump
• High capacity Hitachi fuel injectors
• Hard anodized 6061-T6 aluminum bracket
• OEM 7 rib serpentine belt and tensioner FEAD
• High flow MAF housings
• 2x K&N induction filters with pre-filters
• Hex Flash ECU tuning programming cable
• Fully reversible
• Made in California, USA.
