VOR4TF218-014LComplete Systems
Complete systems include a calibration upgrade and all necessary components to boost your FR-S/BRZ/86 to 294HP and 210 lb-ft torque with 9 PSI at the factory redline. This includes a replacement MAP sensor and Ecutek programmer to re-flash the ECU with a safe, custom Vortech calibration for 91-octane fuel. Calibration for both manual and automatic vehicles is available and 50-State emissions legal under CARB E.O. D-213-35.
Superior Technology
Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.
Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.

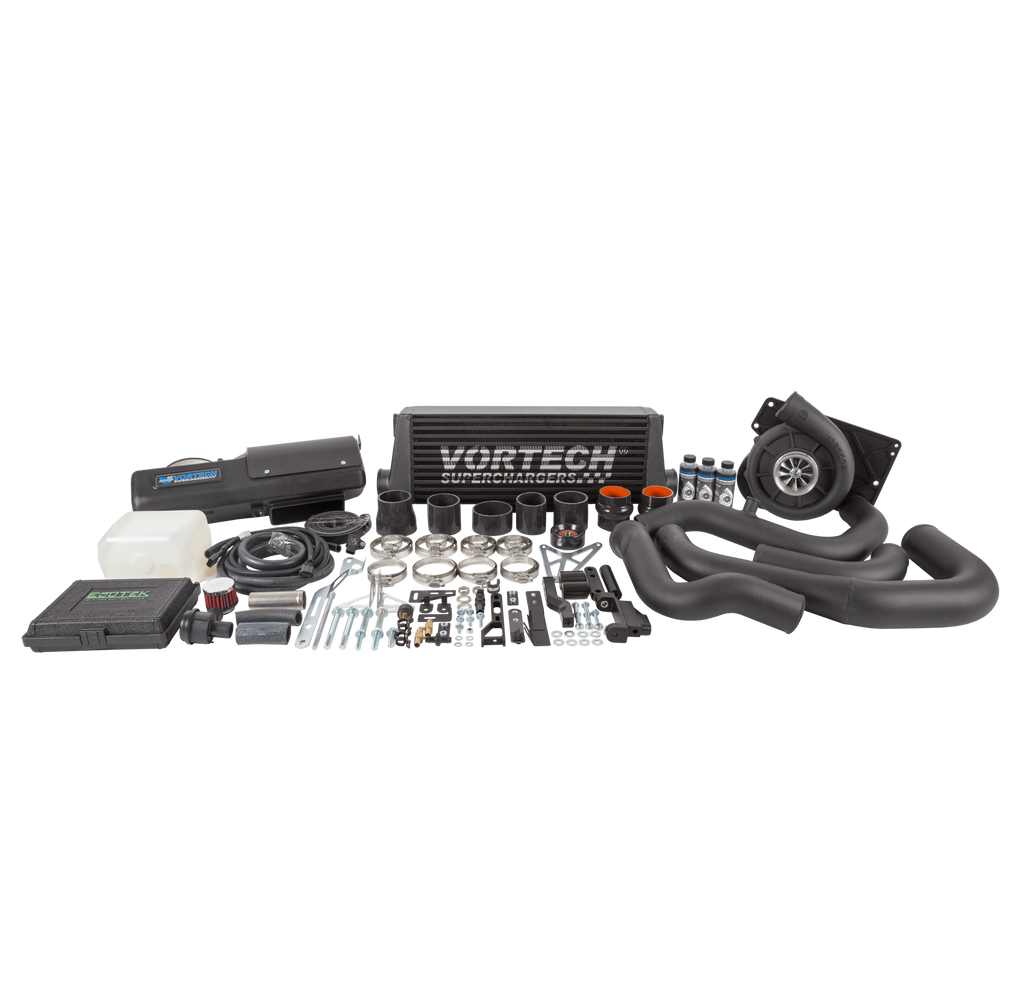

Complete System Included Components and Features

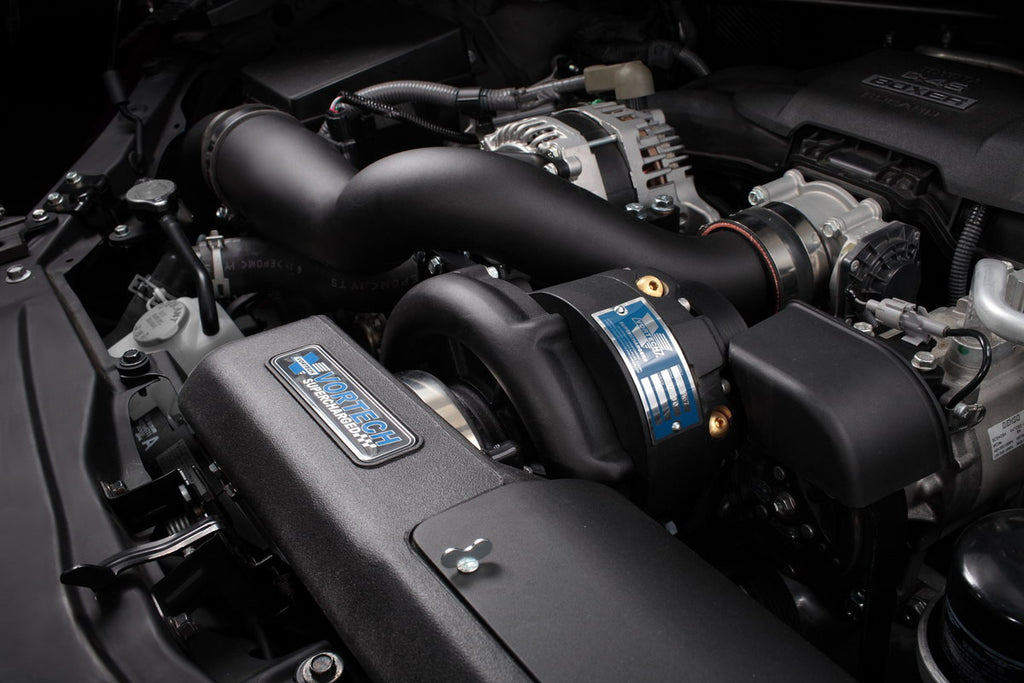

- Gear-driven V-3 H67B centrifugal supercharger, designed specifically for the FA20 Boxer engine. Includes 3.48” drive pulley (approximately 9 PSI at factory redline).
- The V-3 features an internal oil reservoir. No connection between the oil pan and the compressor gear case is required. Includes a remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.
- Technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.
- Stylized airbox and filter housing design allows for additional flow, while retaining the factory cold air ram intake. Quick release fasteners allow for simple access to filter for change/cleaning.
- Integrated air-to-air charge cooler configuration features all aluminum tube ducting and an oversized cooler core to provide maximum cooling with minimal pressure loss.
- Discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps.
- CNC machined billet mounting bracketry with black anodized finish for attractive and functional "factory-type" appearance and rigidity.
- All necessary belts, pulleys and reusable high-flow air filter.
Installation
Installation time is rated at 4-6 hours.
INSTALLATION MANUAL
CARB Compliance
Complete systems are 50-State Emissions Legal per California Air Resources Board (CARB). CARB Executive Order # D-213-35
Optional Parts/Accessories
Maxflow Race BOV Upgrade Assembly
4TF212-104 - For that signature "blow-off" sound between shifts. Direct bolt-on replacement for Vortech FR-S/BRZ Systems. Includes aluminum discharge tube (black powdercoated finish) with bypass flange mount attached, and Billet Vortech Race Blow-off Valve (black anodized finish) with gasket and mounting hardware.
Supercharger pulleys
6-Rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
