Universal Addon CBD08 - CAN Bus Distribution

VP22100

CAN Bus add-on module with 8 ports

Enables feeding of additional CAN Bus sources and data

With the CANchecked displays you have all relevant values in view

CAN Bus connections in the vehicle sometimes put our customers under great challenges. Not only the CAN Bus cables must be laid and connected as elegantly as possible. The devices usually also need power supply and the CAN Bus termination must also be attached somehow. In addition, there are increasingly multiple CAN Buses for different requirements. CANchecked now offers a small add-on module that provides 8 ports with four connections each:

• CAN High
• CAN Low
• 12V
• Ground

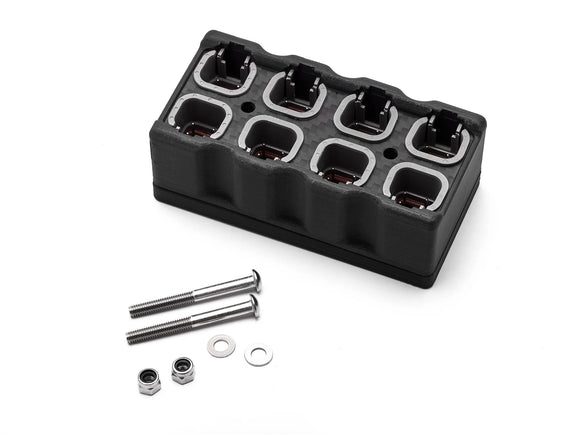

The additional box measures only 96x47x33mm. The sockets are based on the widely used DTM04-4P. The matching mating connector is DTM06-4S, which can be purchased optionally (CC22101). In the middle there are two mounting holes, which should be used with the supplied screws.

Features:
- 8 ports with four connections each: Can High/Low, 12V, Ground

Suitable for:
- All CAN Bus displays, data sources with CAN interfaces

Contains:
- 1x CBD08 CAN Bus extension
- Nuts and bolts

Installation Instructions
Download: HERE
