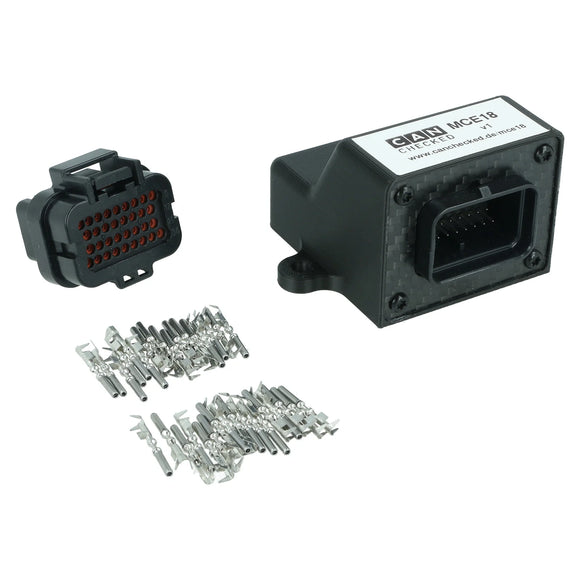

Universal Addon MCE18 with plug

VP22811

MCE18 stands for "Multifunction Can Bus Extension" with 18 connections - why is this module needed? Our displays have four analogue inputs. However, for some applications this may not be enough and you need more inputs.

It makes sense to map this using the flexible Can Bus protocol. For this purpose, the sensors are connected to our MCE18 and sent via CAN bus to the device to be received - e.g. one of our displays.

But even freely programmable control units only have a limited number of inputs. This can be easily expanded with our module and sent directly to the control unit.

Features:
9 analog inputs (0-5V)
6 digital inputs (on/off)
3 digital outputs (on/off LOW SIDE 0.5A) (new in v2!)

Tested with:

- CANchecked MFD28/MFD32/MFD32S
- MaxxECU
- Ecumaster
- LinkECU
- Haltech (emulates an IO Extender A+B or just B)
- Syvecs (coming soon)
- Motec (coming soon)
- AIM

This device is also available without a housing:  CFE18 – can switch board
